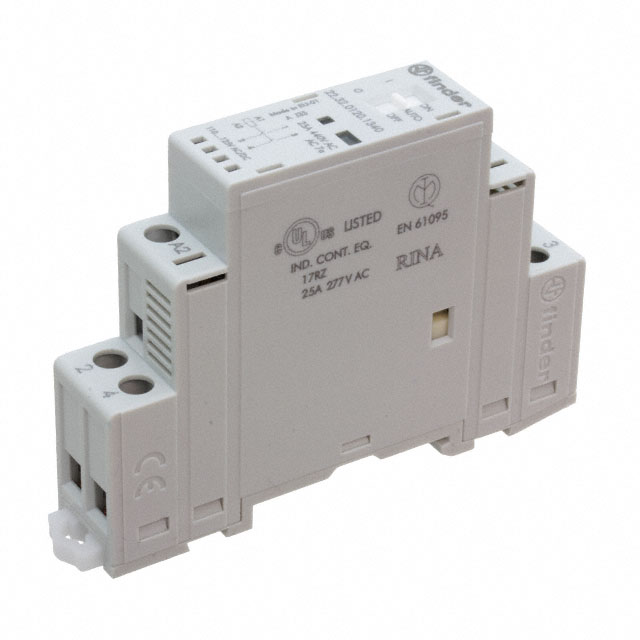

22.32.0.120.4540

Active

Finder Relays, Inc.

RLY CONTACTOR 1NC+1NO 25A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

22.32.0.120.4540

Active

Finder Relays, Inc.

RLY CONTACTOR 1NC+1NO 25A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	22.32.0.120.4540

Coil Current	16.5 mA
Coil Power	2 VA
Coil Resistance	7.27 kOhms
Coil Voltage	120 VAC, 120 VDC
Contact Form	DPST-NO/NC
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	25 A
Features	AUTO-ON-OFF Selector, Mechanical Indicator, Lighted Indicator
Mounting Type	DIN Rail
Must Operate Voltage	88 VAC/DC
Must Release Voltage	12 VAC
Operate Time	30 ms
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Release Time	20 ms
Switching Voltage	250 VAC
Termination Style	Screw Terminal

22.32 Series

Part	Operate Time	Coil Current	Coil Resistance	Mounting Type	Contact Rating (Current)	Termination Style	Coil Voltage	Release Time	Contact Form	Contact Material	Coil Power	Operating Temperature [Max]	Operating Temperature [Min]	Features	Must Operate Voltage	Switching Voltage	Must Release Voltage
Finder Relays, Inc. 22.32.0.230.1520	30 ms	8.7 mA	26.44 kOhms	DIN Rail	25 A	Screw Terminal	230 VAC	20 ms	DPST-NO/NC	Silver Nickel (AgNi)	2 W	50 °C	-20 C	Lighted Indicator Mechanical Indicator	184 VAC	250 VAC	23 VAC
Finder Relays, Inc. 22.32.0.120.4520	30 ms	16.5 mA	7.27 kOhms	DIN Rail	25 A	Screw Terminal	120 VAC 120 VDC	20 ms	DPST-NO/NC	Silver Tin Oxide (AgSnO)	2 W	50 °C	-20 C	Lighted Indicator Mechanical Indicator	88 VAC/DC	250 VAC	12 VAC
Finder Relays, Inc. 22.32.0.048.1320	30 ms	42 mA	1.1 kOhms	DIN Rail	25 A	Screw Terminal	48 VAC/DC	20 ms	DPST-NO (2 Form A)	Silver Nickel (AgNi)	2 W	50 °C	-20 C	Lighted Indicator Mechanical Indicator	38.4 VAC	250 VAC	4.8 VAC
Finder Relays, Inc. 22.32.0.024.4520	30 ms	83 mA	289 Ohms	DIN Rail	25 A	Screw Terminal	24 VAC	20 ms	DPST-NO/NC	Silver Tin Oxide (AgSnO)	2 W	50 °C	-20 C	Lighted Indicator Mechanical Indicator	19.2 VAC	250 VAC	2.4 VAC/DC
Finder Relays, Inc. 22.32.0.120.1520	30 ms	16.5 mA	7.27 kOhms	DIN Rail	25 A	Screw Terminal	120 VAC 120 VDC	20 ms	DPST-NO/NC	Silver Nickel (AgNi)	2 W	50 °C	-20 C	Lighted Indicator Mechanical Indicator	88 VAC/DC	250 VAC	12 VAC
Finder Relays, Inc. 22.32.0.024.1520	30 ms	83 mA	289 Ohms	DIN Rail	25 A	Screw Terminal	24 VAC	20 ms	DPST-NO/NC	Silver Nickel (AgNi)	2 VA	50 °C	-20 C	Lighted Indicator Mechanical Indicator	19.2 VAC	250 VAC	2.4 VAC/DC
Finder Relays, Inc. 22.32.0.120.4540	30 ms	16.5 mA	7.27 kOhms	DIN Rail	25 A	Screw Terminal	120 VAC 120 VDC	20 ms	DPST-NO/NC	Silver Tin Oxide (AgSnO)	2 VA	50 °C	-20 C	AUTO-ON-OFF Selector Lighted Indicator Mechanical Indicator	88 VAC/DC	250 VAC	12 VAC
Finder Relays, Inc. 22.32.0.012.4340	30 ms	165 mA	72 Ohms	DIN Rail	25 A	Screw Terminal	12 VAC/DC	20 ms	DPST-NO (2 Form A)	Silver Tin Oxide (AgSnO)	2 W	50 °C	-20 C	AUTO-ON-OFF Selector Lighted Indicator Mechanical Indicator	9.6 VAC/DC	250 VAC	1.2 VAC
Finder Relays, Inc. 22.32.0.230.1320	30 ms	8.7 mA	26.44 kOhms	DIN Rail	25 A	Screw Terminal	230 VAC	20 ms	DPST-NO (2 Form A)	Silver Nickel (AgNi)	2 W	50 °C	-20 C	Lighted Indicator Mechanical Indicator	184 VAC	250 VAC	23 VAC
Finder Relays, Inc. 22.32.0.012.1320	30 ms	165 mA	72 Ohms	DIN Rail	25 A	Screw Terminal	12 VAC/DC	20 ms	DPST-NO (2 Form A)	Silver Nickel (AgNi)	2 W	50 °C	-20 C	Lighted Indicator Mechanical Indicator	9.6 VAC/DC	250 VAC	1.2 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 42.84
		10	$ 40.70
		25	$ 38.56
		50	$ 36.42
		100	$ 34.28
		250	$ 32.13

Description

General part information

22.32 Series

RLY CONTACTOR 1NC+1NO 25A 120V
