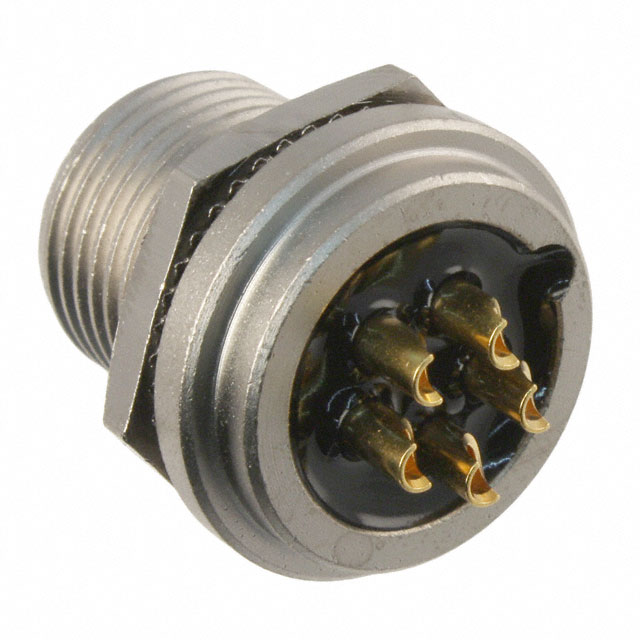

SF7382-5SG-3ES

Active

Conxall/Switchcraft

CONN RCPT FMALE 5P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 5P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Shell Material	Contact Material	Shielding	Orientation	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Mounting Feature	Shell Finish	Color	Primary Material	Contact Finish - Mating	Number of Positions
Conxall/Switchcraft SF7382-5SG-3ES	Receptacle Female Sockets	Copper Alloy	Copper Alloy	Shielded	Keyed	IP66/IP68	-40 °C	120 °C	Polyester Resin	Bulkhead - Front Side Nut	Nickel	Silver	Metal	Gold
Conxall/Switchcraft SF7382-4SG-3ES	Receptacle Female Sockets	Copper Alloy	Copper Alloy	Shielded	Keyed	IP66/IP68	-40 °C	120 °C	Polyester Resin	Bulkhead - Front Side Nut	Nickel	Silver	Metal	Gold	4
Conxall/Switchcraft SF7382-5PG-3ES	Male Pins Receptacle	Copper Alloy	Copper Alloy	Shielded	Keyed	IP66/IP68	-40 °C	120 °C	Polyester Resin	Bulkhead - Front Side Nut	Nickel	Silver	Metal	Gold
Conxall/Switchcraft SF7382-2PG-3ES	Male Pins Receptacle	Copper Alloy	Copper Alloy	Shielded	Keyed	IP66/IP68	-40 °C	120 °C	Polyester Resin	Bulkhead - Front Side Nut	Nickel	Silver	Metal	Gold	2
