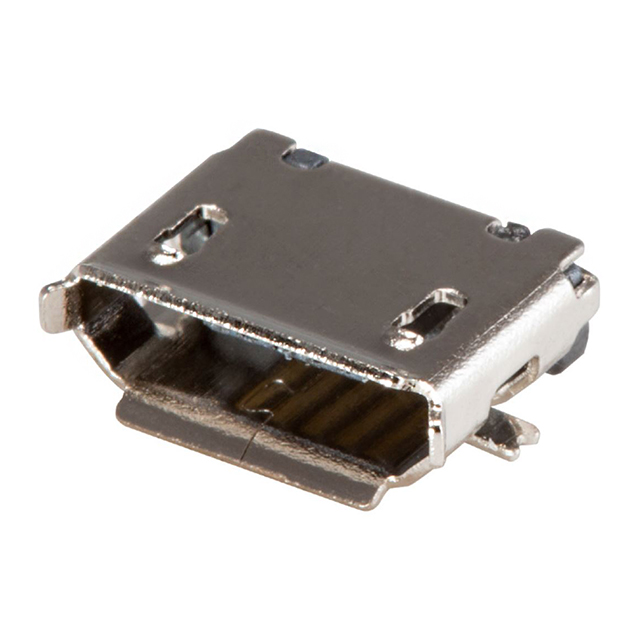

UJ2-MIBH-G-SMT-TR
ActiveCUI Devices
USB JACK, 2.0, MICRO B TYPE, 5 P
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UJ2-MIBH-G-SMT-TR
ActiveCUI Devices
USB JACK, 2.0, MICRO B TYPE, 5 P
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UJ2-MIBH-G-SMT-TR |
|---|---|
| Connector Type | USB - micro B |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.8 A, 0.5 A |
| Features | Solder Retention |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 3000 |
| Mounting Feature | Horizontal |
| Mounting Type | Surface Mount |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Shell/Shielding Material | Copper Alloy |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 5 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.52 | |
| 10 | $ 0.39 | |||
| 25 | $ 0.35 | |||
| 50 | $ 0.33 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.25 | |||
| Digi-Reel® | 1 | $ 0.52 | ||
| 10 | $ 0.39 | |||
| 25 | $ 0.35 | |||
| 50 | $ 0.33 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.25 | |||
| Tape & Reel (TR) | 1000 | $ 0.27 | ||
| 2000 | $ 0.25 | |||
| 3000 | $ 0.24 | |||
| 5000 | $ 0.23 | |||
| 7000 | $ 0.22 | |||
| 10000 | $ 0.22 | |||
| 25000 | $ 0.20 | |||
| 50000 | $ 0.19 | |||
Description
General part information
UJ2-MIBH Series
USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount
