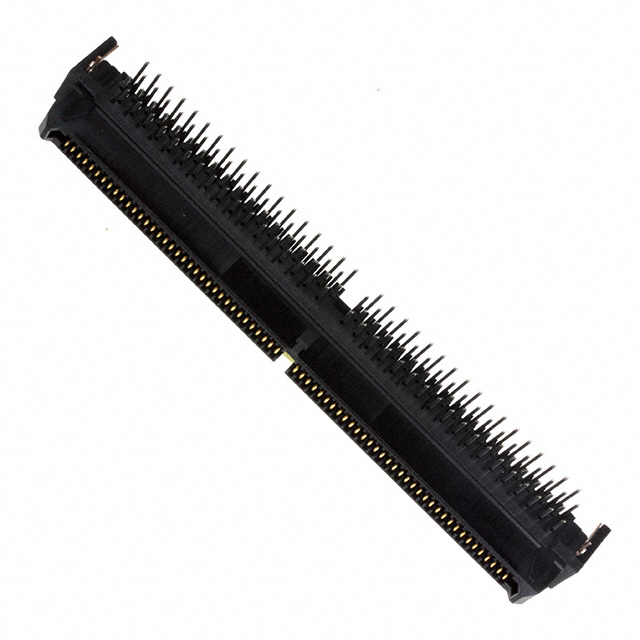

TX24-140R-LT-H1E

Active

JAE Electronics

CONN RCPT 140POS R/A GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 140POS R/A GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	TX24-140R-LT-H1E

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Height Above Board	9 mm
Height Above Board	0.354 in
Mounting Type	Through Hole, Right Angle
Number of Positions	140
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mounting Type	Connector Type	Number of Positions	Number of Rows	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board
JAE Electronics TX24-140R-LT-H1E	4 Áin	0.1 Ám	Gold	Through Hole Right Angle	Receptacle Outer Shroud Contacts	140	2	0.05 in	1.27 mm	9 mm	0.354 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	264	$ 4.52

General part information

140 Position Connector Receptacle, Outer Shroud Contacts Through Hole, Right Angle Gold
