9230-1553-003

Active

Radiall USA, Inc.

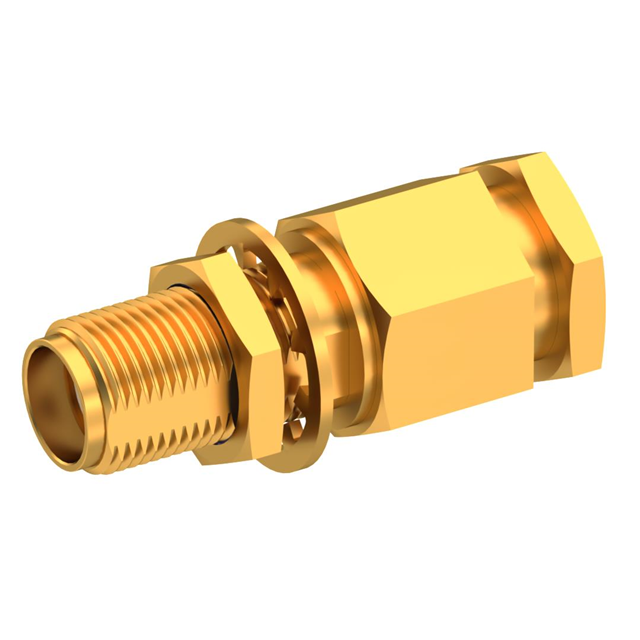

SMA / STRAIGHT JACK FEMALE CLAMP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / STRAIGHT JACK FEMALE CLAMP

Technical Specifications

Parameters and characteristics for this part

Specification	9230-1553-003

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-174, 188, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Compression
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	250 VDC

Part	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Mounting Feature	Mating Cycles	Center Contact Material	Frequency - Max [Max]	Contact Termination	Voltage Rating	Center Contact Plating	Impedance	Shield Termination	Number of Ports	Body Finish	Cable Group	Connector Style	Connector Type	Body Material
Radiall USA, Inc. 9230-1553-003	Gold	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Bulkhead - Front Side Nut	500	Beryllium Copper	12.4 GHz	Compression	250 VDC	Gold	50 Ohms	Clamp	1	Gold	188 316 RG-174	SMA	Female Socket Jack	Stainless Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 31.38

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Compression
