1532204-1

Active

TE Connectivity Aerospace, Defense and Marine

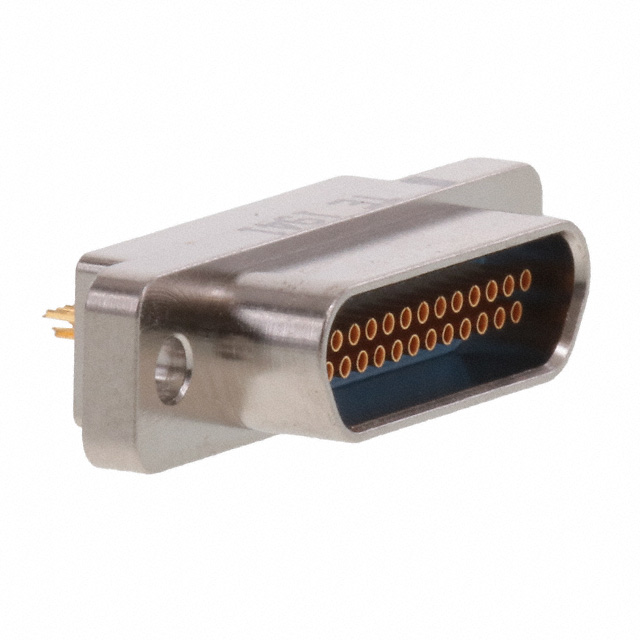

CONN MICRO-D RCPT 25POS SLDR CUP

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN MICRO-D RCPT 25POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	1532204-1

Connector Style	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Type	Signal
Features	Reverse Layout
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Shell Material, Finish	Electroless, Metal, Nickel Plated

Part	Connector Style	Contact Type	Shell Material, Finish	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Features	Connector Type	Mounting Type	Flange Feature	Number of Rows
TE Connectivity Aerospace, Defense and Marine 1532204-1	D-Type Micro-D	Signal	Electroless Metal Nickel Plated	Gold	50 µin	1.27 µm	Reverse Layout	Receptacle Female Sockets	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Type, Micro-D Receptacle, Female Sockets Connector

Technical documentation and resources

No documents available
