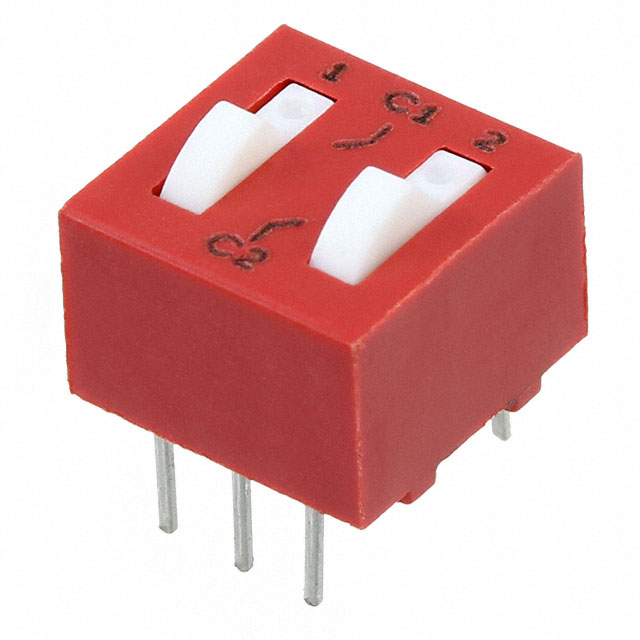

76SC02T

Active

Grayhill Inc.

SWITCH ROCKER DIP SPDT 0.15A 30V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH ROCKER DIP SPDT 0.15A 30V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Pitch [x]	Pitch	Pitch [x]	Contact Finish	Height Above Board [z]	Height Above Board [z]	Contact Material	Electrical Life	Mechanical Life	Voltage Rating	Mounting Type	Actuator Type	Body Material	Actuator Level	Circuit	Length	Length	Number of Positions	Features
Grayhill Inc. 76SC02T	85 °C	-40 °C	PC Pin	0.1 in	Full	2.54 mm	Gold	8 mm	0.315 in	Copper Alloy	2000 Steps	2000 Cycles	30 VDC	Through Hole	Rocker	Thermoplastic	Raised	SPDT	9.65 mm	0.38 in	2
Grayhill Inc. 76SC02ST	85 °C	-40 °C	PC Pin	0.1 in	Full	2.54 mm	Gold	8 mm	0.315 in	Copper Alloy	2000 Steps	2000 Cycles	30 VDC	Through Hole	Rocker	Thermoplastic	Raised	SPDT	9.65 mm	0.38 in	2	Tape Seal
Grayhill Inc. 76SC04ST	85 °C	-40 °C	PC Pin	0.1 in	Full	2.54 mm	Gold	8 mm	0.315 in	Copper Alloy	2000 Steps	2000 Cycles	30 VDC	Through Hole	Rocker	Thermoplastic	Raised	SPDT			4	Tape Seal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch SPDT 2 Position Through Hole Rocker Actuator 150mA 30VDC
