44423213

Active

LAPP

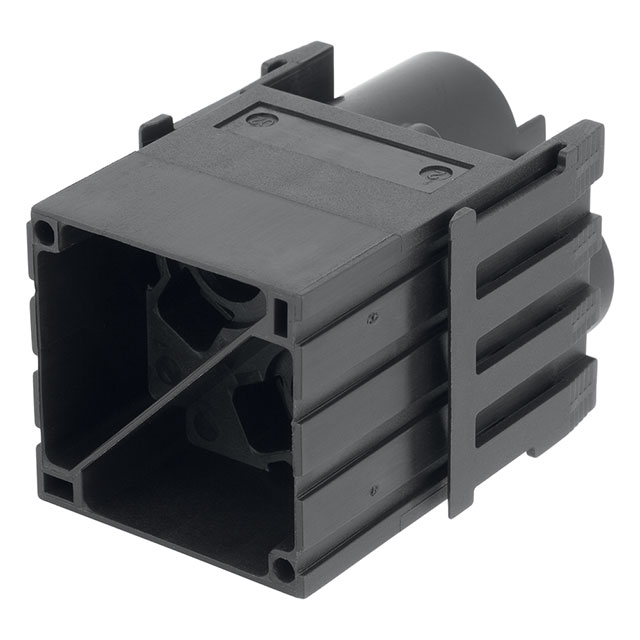

CONNECTOR: HDC; MODULE; FEMALE; EPIC® MH; PIN: 2; 100A; 1KV; CRIMPED

Search across all available documentation for this part.

Active

LAPP

CONNECTOR: HDC; MODULE; FEMALE; EPIC® MH; PIN: 2; 100A; 1KV; CRIMPED

Technical Specifications

Parameters and characteristics for this part

Specification	44423213

Connector Type	Module without Contacts
Current Rating (Amps)	100 A
Gender	Female
Housing Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	1000 VDC

Part	Housing Material	Current Rating (Amps)	Material Flammability Rating	Number of Positions	Voltage Rating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Gender
LAPP 44423213	Polyamide (PA) Nylon Glass Filled	100 A	UL94 V-0	2	1000 VDC	Module without Contacts	125 °C	-40 °C	Crimp	Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Module without Contacts 2 Position Crimp
