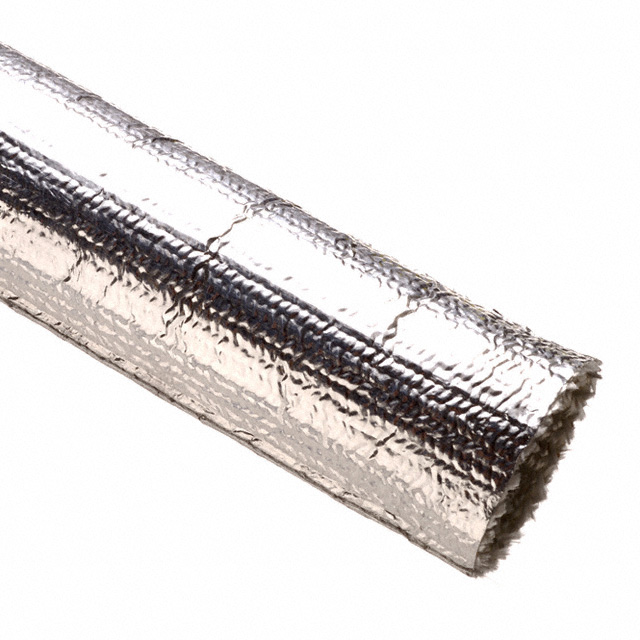

TTN1.25SV250

Active

Techflex

SLEEVING 1.25" ID 250' SILVER

Search across all available documentation for this part.

Active

Techflex

SLEEVING 1.25" ID 250' SILVER

Technical Specifications

Parameters and characteristics for this part

Specification	TTN1.25SV250

Abrasion Protection	Abrasion Resistant
Color	Silver
Diameter - Inside [diameter]	31.75 mm
Diameter - Inside [diameter]	1.25 in
Diameter - Outside [diameter]	33.02 mm
Diameter - Outside [diameter]	1.3 in
Features	Clean Cut, Chemical Resistant
Heat Protection	Flame Retardant, Heat Resistant
Length [x]	76.2 m
Length [x]	250 ft
Liquid Protection	Gasoline Resistant
Material	Halogen Free, Fiberglass, Aluminized
Material Flammability Rating	Non Flammable
Operating Temperature [Max]	255 °C
Operating Temperature [Min]	-60 °C
Type	Sleeving, Insulated
Type Attributes	Convoluted - Braided
Wall Thickness [custom]	0.025 in
Wall Thickness [custom]	0.64 mm

Part	Length	Length	Abrasion Protection	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Features	Wall Thickness [custom]	Wall Thickness [custom]	Heat Protection	Type Attributes	Material	Color	Liquid Protection	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Type	Length [x]	Length [x]
Techflex TTN1.50SV100	100 ft	30.48 m	Abrasion Resistant	39.37 mm	1.55 in	1.5 in	38.1 mm	Chemical Resistant Clean Cut	0.025 in	0.64 mm	Flame Retardant Heat Resistant	Convoluted - Braided	Aluminized Fiberglass Halogen Free	Silver	Gasoline Resistant	-60 °C	255 °C	Non Flammable	Sleeving Insulated
Techflex TTN1.25SV250			Abrasion Resistant	33.02 mm	1.3 in	1.25 in	31.75 mm	Chemical Resistant Clean Cut	0.025 in	0.64 mm	Flame Retardant Heat Resistant	Convoluted - Braided	Aluminized Fiberglass Halogen Free	Silver	Gasoline Resistant	-60 °C	255 °C	Non Flammable	Sleeving Insulated	76.2 m	250 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 610.35

General part information

Silver Fiberglass, Aluminized, Halogen Free Convoluted - Braided Sleeving, Insulated 1.250" (31.75mm) 250' (76.20m)
