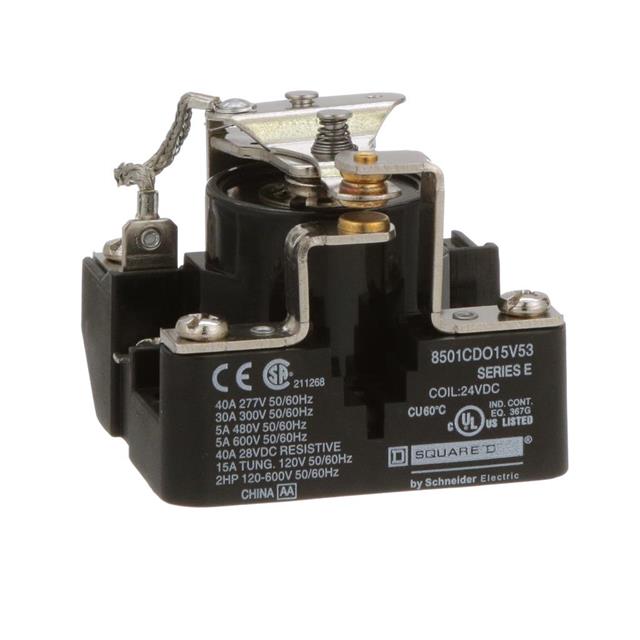

8501CDO15V53
ObsoleteSQUARE D BY SCHNEIDER ELECTRIC
POWER RELAY, TYPE C, 2 HP, 30A R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8501CDO15V53
ObsoleteSQUARE D BY SCHNEIDER ELECTRIC
POWER RELAY, TYPE C, 2 HP, 30A R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8501CDO15V53 |
|---|---|
| Approval Agency | UL, CSA, CE |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | DPST-NO/NC |
| Contact Rating (Current) | 30 A |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Relay Type | General Purpose |
| Switching Voltage | 600 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 88.44 | |
| 10 | $ 83.53 | |||
| 25 | $ 78.61 | |||
| 50 | $ 73.70 | |||
| 100 | $ 69.54 | |||
Description
General part information
8501CD Series
General Purpose Relay DPST-NO/NC (1 Form A, 1 Form B) 24VDC Coil Chassis Mount
