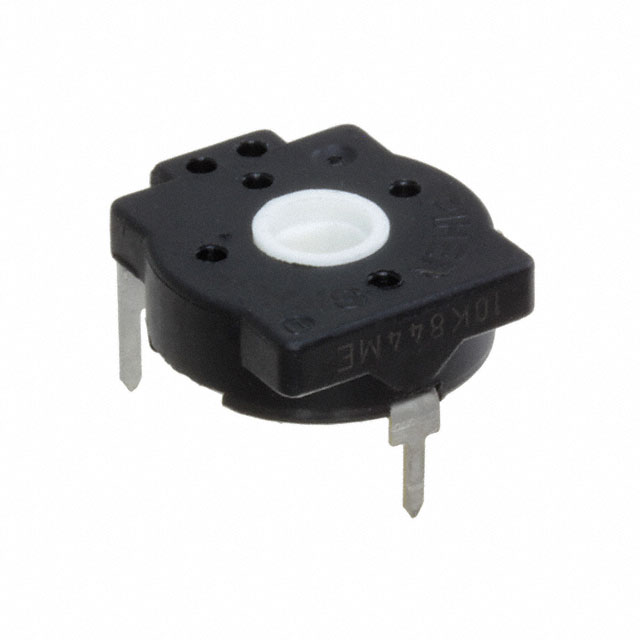

ST15NV15-103A2020-E-PM-S
ActiveAmphenol Piher Sensing Systems
TRIMMER 10K OHM 0.25W PC PIN TOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ST15NV15-103A2020-E-PM-S
ActiveAmphenol Piher Sensing Systems
TRIMMER 10K OHM 0.25W PC PIN TOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ST15NV15-103A2020-E-PM-S |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 1 |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Resistance | 10000 Ohms |
| Size / Dimension [diameter] | 15 mm |
| Size / Dimension [diameter] | 0.591 in |
| Termination Style | PC Pins |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 1.56 | |
| 10 | $ 1.26 | |||
| 25 | $ 1.15 | |||
| 50 | $ 1.08 | |||
| 100 | $ 1.01 | |||
| 250 | $ 0.92 | |||
| 500 | $ 0.86 | |||
| 1000 | $ 0.81 | |||
| 5000 | $ 0.79 | |||
Description
General part information
ST15NV15 Series
10 kOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer 1.0 Turn Top Adjustment
