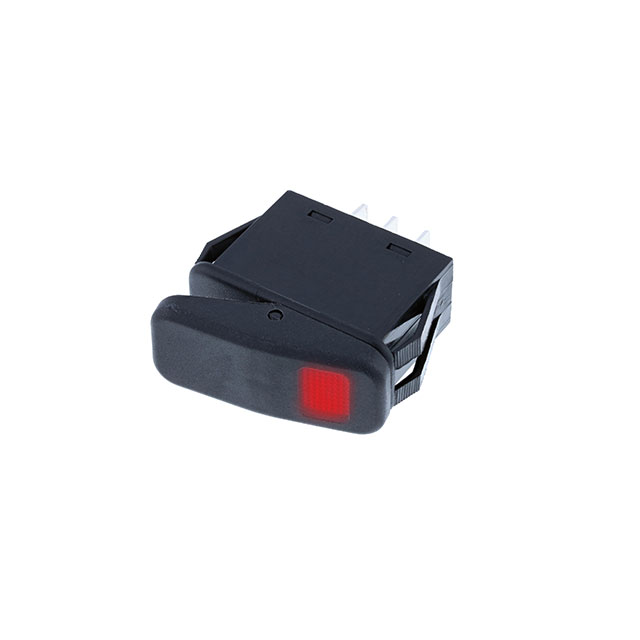

SRC2-1A-DC-1-RL
ActiveSwitch Components
SWITCH ROCKER SPST 21A 14V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRC2-1A-DC-1-RL |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Convex (Reverse V) - Illuminated |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 21 A |
| Electrical Life | 6000 Cycles |
| Illumination Type, Color | Red, LED |
| Illumination Voltage (Nominal) | 14 VDC |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Mechanical Life | 10000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 36.8 mm |
| Panel Cutout Dimensions [y] | 15.3 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - DC | 14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.34 | |
| 10 | $ 4.16 | |||
| 25 | $ 4.00 | |||
| 50 | $ 3.79 | |||
| 100 | $ 3.60 | |||
| 250 | $ 3.42 | |||
| 500 | $ 3.11 | |||
| 1000 | $ 2.85 | |||
Description
General part information
SRC2-1A Series
Rocker Switch SPST 21A (DC) Panel Mount, Snap-In
