ICE5LP4K-SWG36ITR1K

Active

LATTICE SEMICONDUCTOR

FPGA ICE40 ULTRA FAMILY 3520 CELLS 40NM TECHNOLOGY 1.2V 36-PIN WLCSP T/R

Search across all available documentation for this part.

Active

LATTICE SEMICONDUCTOR

FPGA ICE40 ULTRA FAMILY 3520 CELLS 40NM TECHNOLOGY 1.2V 36-PIN WLCSP T/R

Technical Specifications

Parameters and characteristics for this part

Specification	ICE5LP4K-SWG36ITR1K

Mounting Type	Surface Mount
Number of I/O	26 I/O
Number of LABs/CLBs	440
Number of Logic Elements/Cells	3520
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 C

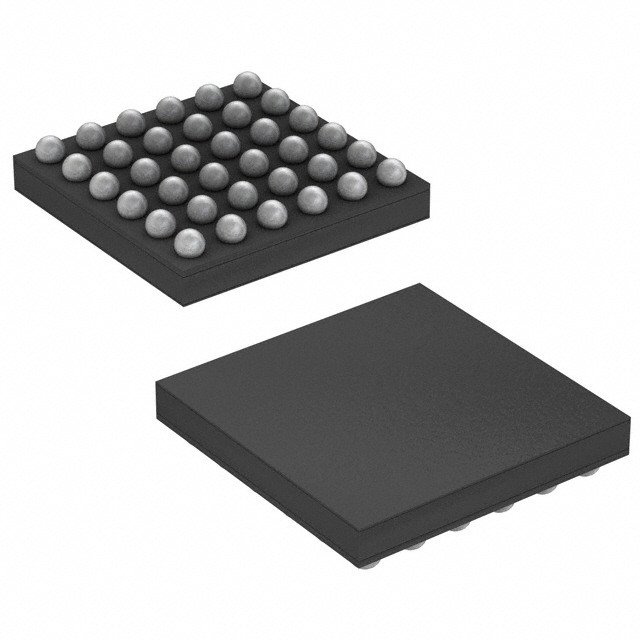

Package / Case	36-XFBGA, WLCSP
Supplier Device Package	36-WLCSP
Supplier Device Package [x]	2.1
Supplier Device Package [y]	2.1
Total RAM Bits	81920 Bits

Part	Total RAM Bits	Mounting Type	Package / Case	Supplier Device Package	Number of I/O	Number of Logic Elements/Cells	Operating Temperature [Max]	Operating Temperature [Min]	Number of LABs/CLBs	Supplier Device Package [y]	Supplier Device Package [x]
LATTICE SEMICONDUCTOR ICE5LP4K-SG48ITR	81920 Bits	Surface Mount	48-VFQFN Exposed Pad	48-QFN (7x7)	39 I/O	3520	100 °C	-40 C	440
LATTICE SEMICONDUCTOR ICE5LP4K-SWG36ITR1K	81920 Bits	Surface Mount	36-XFBGA WLCSP	36-WLCSP	26 I/O	3520	100 °C	-40 C	440	2.1	2.1
LATTICE SEMICONDUCTOR ICE5LP4K-SWG36ITR	81920 Bits	Surface Mount	36-XFBGA WLCSP	36-WLCSP	26 I/O	3520	100 °C	-40 C	440	2.1	2.1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

iCE40 Ultra™ Field Programmable Gate Array (FPGA) IC 26 81920 3520 36-XFBGA, WLCSP
