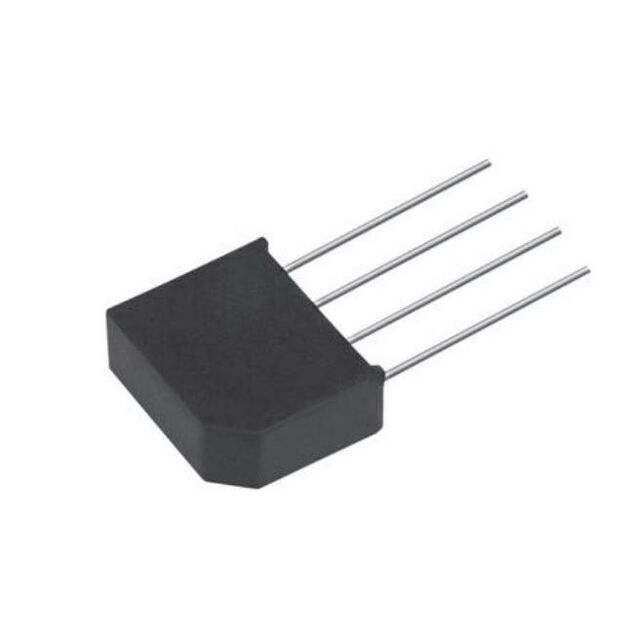

VS-2KBP01

Active

Vishay General Semiconductor - Diodes Division

BRIDGE RECT 1PHASE 100V 2A D-44

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

BRIDGE RECT 1PHASE 100V 2A D-44

Technical Specifications

Parameters and characteristics for this part

Specification	VS-2KBP01

Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	4-SIP, D-44
Supplier Device Package	D-44
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1 V
Voltage - Peak Reverse (Max) [Max]	100 V

Part	Diode Type	Supplier Device Package	Technology	Voltage - Forward (Vf) (Max) @ If	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Peak Reverse (Max) [Max]	Package / Case	Mounting Type	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr
Vishay General Semiconductor - Diodes Division 2KBP01M/1	Single Phase	KBPM	Standard	1.1 V	-55 °C	165 °C	100 V	4-SIP KBPM	Through Hole	2 A	5 µA
Vishay General Semiconductor - Diodes Division VS-2KBP01	Single Phase	D-44	Standard	1 V	-40 °C	150 °C	100 V	4-SIP D-44	Through Hole	2 A	10 µA
Vishay General Semiconductor - Diodes Division 2KBP01M-E4/51	Single Phase	KBPM	Standard	1.1 V	-55 °C	165 °C	100 V	4-SIP KBPM	Through Hole	2 A	5 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 100 V Through Hole D-44
