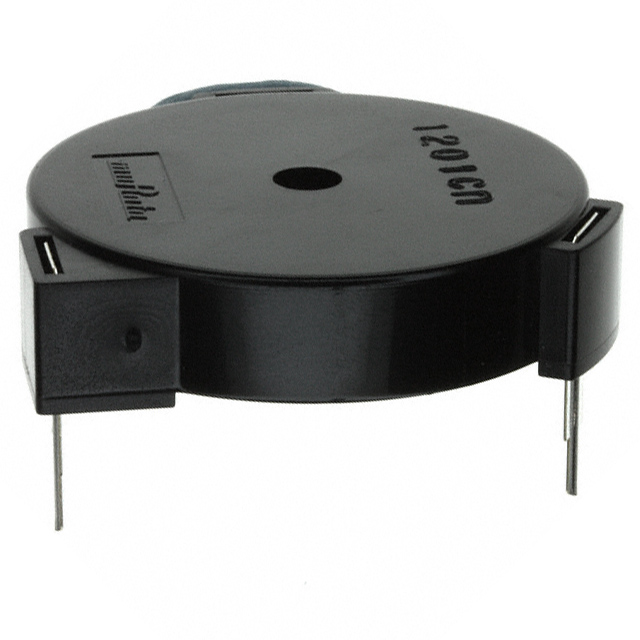

PKM33EPH1201C

Obsolete

Murata Power Solutions Inc.

BUZZER PIEZO 30V 33MM TH

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

BUZZER PIEZO 30V 33MM TH

Technical Specifications

Parameters and characteristics for this part

Specification	PKM33EPH1201C

Driver Circuitry	Externally Driven, Transducer
Frequency	1.2 kHz
Height - Seated (Max) [Max] [z]	8 mm
Height - Seated (Max) [Max] [z]	0.315 in
Input Type	Peak-Peak Signal
Mounting Type	Through Hole
Operating Mode	Ringer
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Port Location	Top
Size / Dimension [diameter]	1.299 "
Size / Dimension [diameter]	33 mm
Sound Pressure Level (SPL)	68 dB
Technology	Piezo
Termination	PC Pins
Voltage - Rated	30 V

Part	Port Location	Input Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Termination	Voltage - Rated	Operating Mode	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Sound Pressure Level (SPL)	Frequency	Technology	Mounting Type	Driver Circuitry
Murata Power Solutions Inc. PKM33EPH1201C	Top	Peak-Peak Signal	8 mm	0.315 in	PC Pins	30 V	Ringer	-20 C	70 °C	1.299 "	33 mm	68 dB	1.2 kHz	Piezo	Through Hole	Externally Driven Transducer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Buzzers Transducer, Externally Driven Piezo 30 V 1.2kHz 68dB @ 30V, 100cm Through Hole PC Pins

Technical documentation and resources

No documents available
