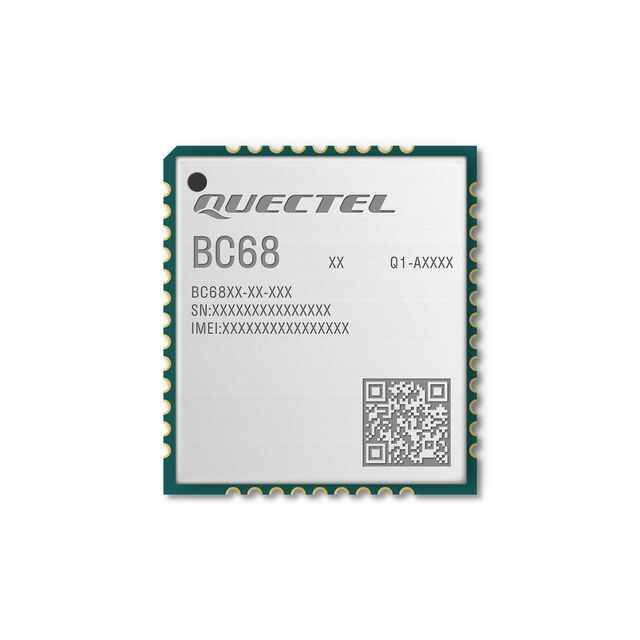

BC68JA-02-ATEX
ObsoleteQuectel
RF TXRX MODULE CELL SMD
Deep-Dive with AI
Search across all available documentation for this part.
BC68JA-02-ATEX
ObsoleteQuectel
RF TXRX MODULE CELL SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BC68JA-02-ATEX |
|---|---|
| Current - Receiving | 60 mA |
| Current - Transmitting [Max] | 280 mA |
| Current - Transmitting [Min] | 70 mA |
| Data Rate | 150 kbps |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -35 °C |
| Package / Case | Module |
| Power - Output | 23 dBmW |
| Protocol | GPRS, GSM, LTE |
| RF Family/Standard | Cellular |
| Sensitivity | -129 dBm |
| Serial Interfaces | UART, ADC |
| Voltage - Supply [Max] | 4.2 V |
| Voltage - Supply [Min] | 3.1 V |
BC68 Series
| Part | Current - Transmitting [Min] | Current - Transmitting [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case | Serial Interfaces | Mounting Type | Protocol | Sensitivity | Current - Receiving | RF Family/Standard | Data Rate | Operating Temperature [Min] | Operating Temperature [Max] | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Quectel | 70 mA | 280 mA | 4.2 V | 3.1 V | Module | ADC UART | Surface Mount | GPRS GSM LTE | -129 dBm | 60 mA | Cellular | 150 kbps | -35 °C | 75 ░C | 23 dBmW |
Quectel | 70 mA | 280 mA | 4.2 V | 3.1 V | Module | ADC UART | Surface Mount | GPRS GSM LTE | -129 dBm | 60 mA | Cellular | 150 kbps | -35 °C | 75 ░C | 23 dBmW |
Quectel | 70 mA | 280 mA | 4.2 V | 3.1 V | Module | ADC UART | Surface Mount | GPRS GSM LTE | -129 dBm | 60 mA | Cellular | 150 kbps | -35 °C | 75 ░C | 23 dBmW |
Quectel | 70 mA | 280 mA | 4.2 V | 3.1 V | Module | ADC UART | Surface Mount | GPRS GSM LTE | -129 dBm | 60 mA | Cellular | 150 kbps | -35 °C | 75 ░C | 23 dBmW |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BC68 Series
Cellular GPRS, GSM, LTE Transceiver Module 700MHz, 800MHz, 850MHz, 900MHz, 1.8GHz, 2.1GHz Surface Mount
Documents
Technical documentation and resources
No documents available
