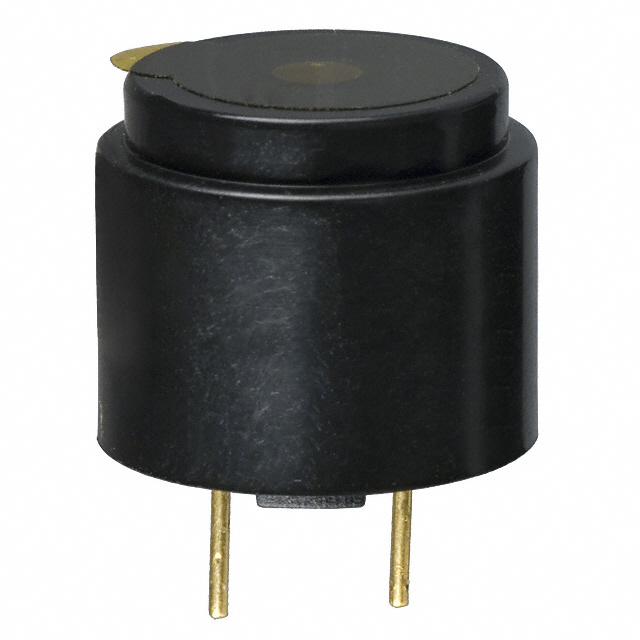

CX-1612C

Active

CUI Devices

AUDIO BUZZER MAGNETIC 8VDC 16VDC 35MA 12VDC 85DB 1900HZ TO 2500HZ THROUGH HOLE PIN

Search across all available documentation for this part.

Active

CUI Devices

AUDIO BUZZER MAGNETIC 8VDC 16VDC 35MA 12VDC 85DB 1900HZ TO 2500HZ THROUGH HOLE PIN

Technical Specifications

Parameters and characteristics for this part

Specification	CX-1612C

Current - Supply	35 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	2.2 kHz
Height - Seated (Max) [Max] [z]	0.571 in
Height - Seated (Max) [Max] [z]	14.5 mm
Input Type	DC
Mounting Type	Through Hole
Operating Mode	Single Tone
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Port Location	Top
Ratings	Washable
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Sound Pressure Level (SPL)	85 dB
Technology	Magnetic
Termination	PC Pins
Voltage - Rated	12 VDC
Voltage Range [Max]	16 V
Voltage Range [Min]	8 VDC

Part	Voltage - Rated	Port Location	Driver Circuitry	Termination	Sound Pressure Level (SPL)	Mounting Type	Voltage Range [Min]	Voltage Range [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Mode	Technology	Frequency	Ratings	Current - Supply	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Input Type
CUI Devices CX-1612C	12 VDC	Top	Indicator Internally Driven	PC Pins	85 dB	Through Hole	8 VDC	16 V	-20 C	60 °C	Single Tone	Magnetic	2.2 kHz	Washable	35 mA	0.63 in	16 mm	0.571 in	14.5 mm	DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Indicator, Internally Driven Magnetic 12 V 35mA 2.2kHz 85dB @ 12V, 10cm Through Hole PC Pins
