LHB-09-SB1

Active

Adam Tech

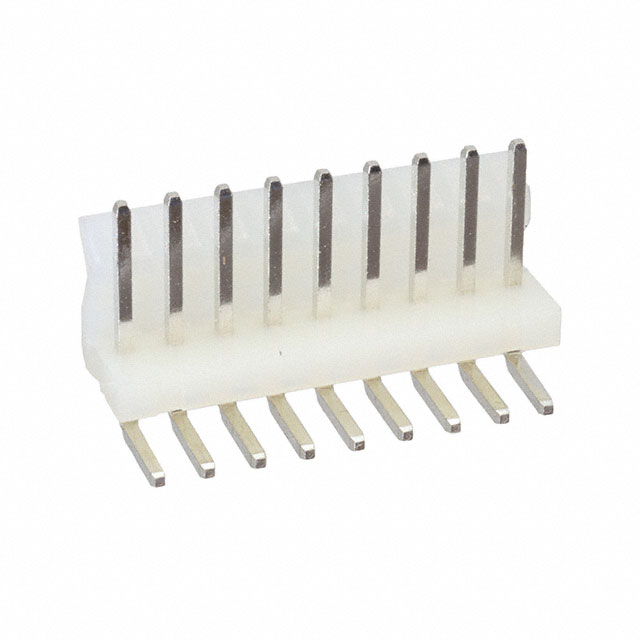

CONN HDR 9 POS 3.96MM SOLDER RA THRU-HOLE 9 TERMINAL 1 PORT BAG

Search across all available documentation for this part.

Active

Adam Tech

CONN HDR 9 POS 3.96MM SOLDER RA THRU-HOLE 9 TERMINAL 1 PORT BAG

Technical Specifications

Parameters and characteristics for this part

Specification	LHB-09-SB1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.445 in
Contact Length - Mating	11.3 mm
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Style	Current Rating (Amps)	Contact Shape	Fastening Type	Connector Type	Mounting Type	Number of Positions Loaded	Insulation Material	Number of Rows	Shrouding	Contact Type	Voltage Rating	Insulation Color	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Termination	Number of Positions	Contact Length - Mating	Contact Length - Mating
Adam Tech LHB-09-SB1	Board to Cable/Wire	5 A	Square	Friction Lock	Header	Through Hole Right Angle	All	Polyamide (PA66) Nylon 6/6	1	Shrouded - 1 Wall	Male Pin	250 VAC	White	Tin	-25 °C	85 °C	0.156 in	3.96 mm	UL94 V-2	0.134 in	3.4 mm	Brass	Solder	9	0.445 in	11.3 mm
