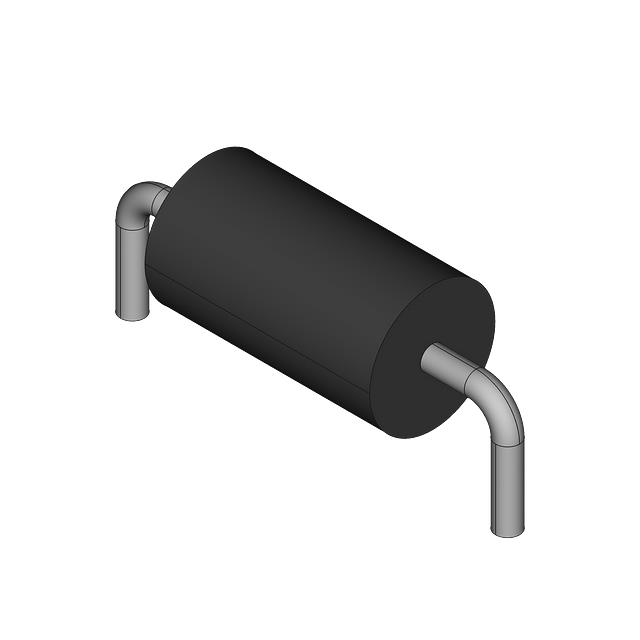

1N5822

Active

ON Semiconductor

SCHOTTKY BARRIER RECTIFIER, 3.0 A, 40 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPackage Drawing-017AF-Axial Lead Datasheet

1N5822

Active

ON Semiconductor

SCHOTTKY BARRIER RECTIFIER, 3.0 A, 40 V

Deep-Dive with AI

DocumentsPackage Drawing-017AF-Axial Lead Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1N5822

Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	2 mA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	Axial, DO-27, DO-201AA
Speed	200 mA, 500 ns
Supplier Device Package	Axial
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	525 mV

1N5822 Series

Schottky Barrier Rectifier, 3.0 A, 40 V

Part	Speed	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Package / Case	Supplier Device Package
ON Semiconductor 1N5822	200 mA 500 ns	525 mV	3 A	2 mA	Schottky	125 °C	-65 C	40 V	Through Hole	Axial DO-201AA DO-27	Axial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.04
		100	$ 13.04
		1155	$ 0.26
		1700	$ 0.15
		3400	$ 0.13
		5100	$ 0.13
		11900	$ 0.12
		42500	$ 0.11
		85000	$ 0.10
	Cut Tape (CT)	1	$ 0.47
		10	$ 0.38
		25	$ 0.35
		100	$ 0.26
		250	$ 0.24
		500	$ 0.20

Description

General part information

1N5822 Series

The Schottky Rectifier employs the Schottky Barrier principle in a large area metal-to-silicon power diode. The Schottky Rectifier¿s state-of-the-art geometry features chrome barrier metal, epitaxial construction with oxide passivation and metal overlap contact. It is ideally suited for use as rectifiers in low-voltage, high-frequency inverters, free wheeling diodes and polarity protection diodes.
