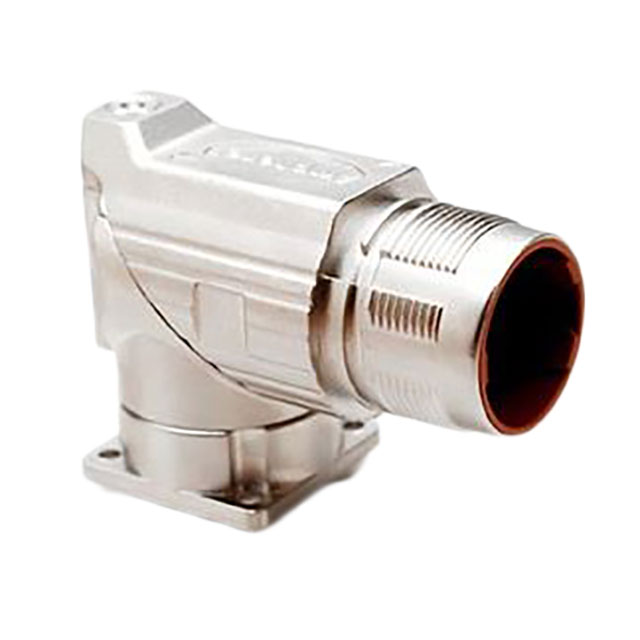

MB2RJN0901

Obsolete

Amphenol Sine Systems Corp

CONN RCPT HSG MALE 9P PNL MT RA

Search across all available documentation for this part.

Obsolete

Amphenol Sine Systems Corp

CONN RCPT HSG MALE 9P PNL MT RA

Technical Specifications

Parameters and characteristics for this part

Specification	MB2RJN0901

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size [custom]	2 mm
Contact Size [custom]	1 mm
Contact Type	Crimp
Fastening Type	Push-Twist
Features	Backshell, Rotatable
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Note	Contacts Not Included
Number of Positions [custom]	4
Number of Positions [custom]	9
Number of Positions [custom]	4
Number of Positions [custom]	1
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-9
Shielding	Shielded
Type	For Male Pins

Part	Connector Type	Mounting Type	Type	Housing Color	Fastening Type	Material Flammability Rating	Ingress Protection	Shell Material	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Mounting Feature	Shell Size - Insert	Orientation	Insert Material	Features	Contact Size [custom]	Contact Size [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Contact Shape	Contact Type	Note	Shielding
Amphenol Sine Systems Corp MB2RJN0901	Receptacle Housing	Panel Mount Right Angle	For Male Pins	Silver	Push-Twist	UL94 V-0	IP67 - Dust Tight Waterproof	Zinc Die Cast	4	9	4	1	Flange	M23-9	Keyed	Polyamide (PA66) Nylon 6/6	Backshell Rotatable	2 mm	1 mm	-20 C	130 °C	Nickel	Circular	Crimp	Contacts Not Included	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

9 (4 + 4 Power + PE) Position Circular Connector Receptacle Housing Panel Mount, Right Angle Backshell, Rotatable

Technical documentation and resources

No documents available
