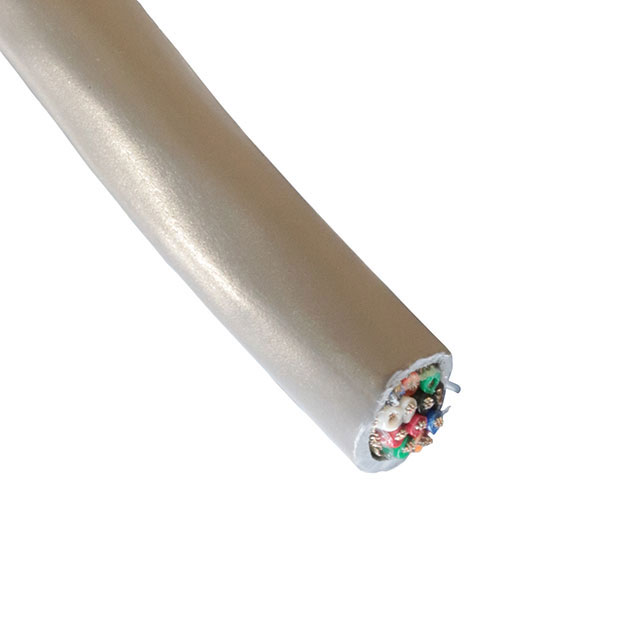

M13210 SL002

Active

ALPHA WIRE

CABLE 12COND 20AWG SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 12COND 20AWG SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	M13210 SL002

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.396 "
Jacket (Insulation) Diameter [diameter]	10.06 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	85 %
Shield Material	Copper, Tinned
Shield Type	Braid
Voltage	300 V
Wire Gauge	20 AWG

Part	Cable Type	Shield Coverage	Ratings	Voltage	Jacket (Insulation) Material	Wire Gauge	Jacket Color	Conductor Material	Conductor Insulation	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length
ALPHA WIRE M13210 SL005	Multi-Conductor	85 %	UL Style 2464	300 V	Poly-Vinyl Chloride (PVC)	20 AWG	Slate	Copper Tinned	Poly-Vinyl Chloride (PVC)	12	0.04 in	1.016 mm	-20 C	80 C	Braid	Copper Tinned	0.396 "	10.06 mm	30.5 m	100 ft	28	7
ALPHA WIRE M13210 SL002	Multi-Conductor	85 %	UL Style 2464	300 V	Poly-Vinyl Chloride (PVC)	20 AWG	Slate	Copper Tinned	Poly-Vinyl Chloride (PVC)	12	0.04 in	1.016 mm	-20 C	80 C	Braid	Copper Tinned	0.396 "	10.06 mm	152.4 m	500 '	28	7
ALPHA WIRE M13210 SL001	Multi-Conductor	85 %	UL Style 2464	300 V	Poly-Vinyl Chloride (PVC)	20 AWG	Slate	Copper Tinned	Poly-Vinyl Chloride (PVC)	12	0.04 in	1.016 mm	-20 C	80 C	Braid	Copper Tinned	0.396 "	10.06 mm			28	7	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 4.23

General part information

12 Conductor Multi-Conductor Cable Slate 20 AWG Braid 500.0' (152.4m)
