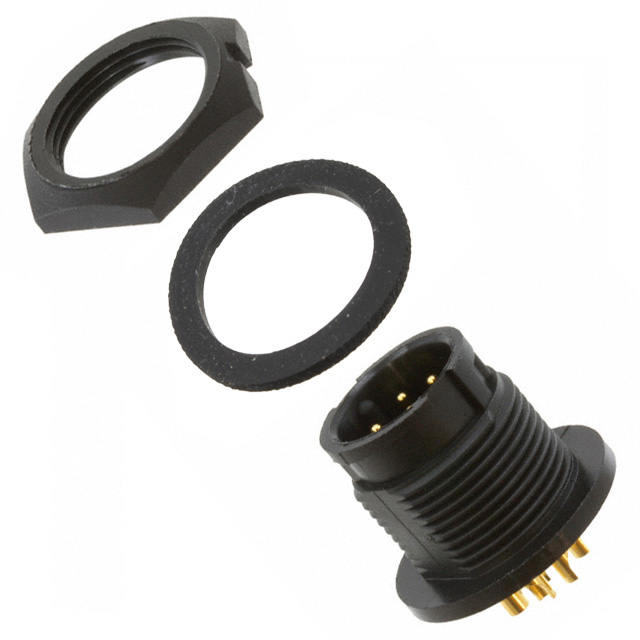

7282-7PG-3ES

Active

Conxall/Switchcraft

CONN RCPT MALE 7P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 7P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	7282-7PG-3ES

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	7
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

Part	Shielding	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Material	Number of Positions	Connector Type	Voltage Rating	Primary Material	Applications	Color	Backshell Material, Plating	Mounting Feature	Orientation	Fastening Type	Ingress Protection
Conxall/Switchcraft 7282-7PG-3ES	Unshielded	Varies by Wire Gauge	-40 °C	115 °C	Gold	Brass	7	Male Pins Receptacle	600 V	Plastic	Automotive Communication Systems Instrumentation	Black	Nylon Polyamide (PA)	Bulkhead - Front Side Nut	Keyed	Bayonet Lock	Weathertight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Male Pins Solder Cup
