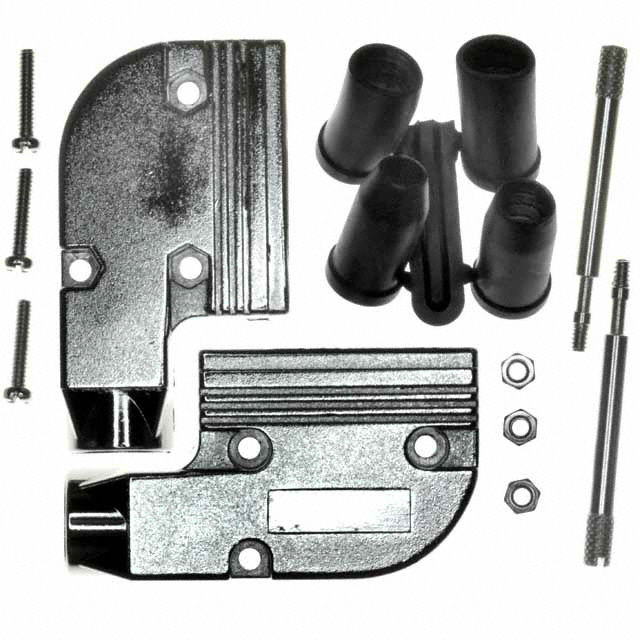

981-015-130R121
ActiveMH Connectors
D SUB BACKSHELL, ARMOR 981 SERIES, DA, 90°, ZINC ALLOY BODY
Deep-Dive with AI
Search across all available documentation for this part.
981-015-130R121
ActiveMH Connectors
D SUB BACKSHELL, ARMOR 981 SERIES, DA, 90°, ZINC ALLOY BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 981-015-130R121 |
|---|---|
| Accessory Type | Two Piece Backshell |
| Cable Exit | 90 ° |
| Cable Type | Round |
| Color | Silver |
| Compatible D-Sub Size | 15pos, HD26pos |
| Compatible Shell Size | A |
| Features | Mating Screws 4-40 |
| Hardware | Assembly Hardware, Grommets |
| Material | Zinc Alloy, Metal |
| Number of Positions | 15 |
| Plating | Nickel over Copper |
| Primary Material | Metal |
| Shielding | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
981-015 Series
The 981 series Ethernet D-sub Backshell is available in 3 industry sizes/positions (9, 15 and 25) and also available in die cast for over 70dB shielding. It is non-conductive grommet/strain relief supplied to enhance shielding and provide proper strain relief.
