CW100505-1N0D

Active

Bourns Inc.

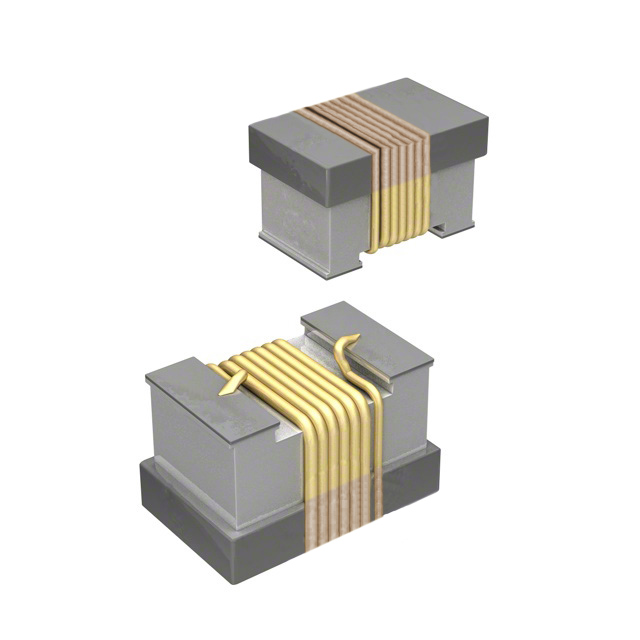

MULTILAYER INDUCTOR, 1 NH, 0.045 OHM, 6 GHZ, 1.36 A, 0402 [1005 METRIC], CW100505 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet CW100505 Product Bulletin +2

CW100505-1N0D

Active

Bourns Inc.

MULTILAYER INDUCTOR, 1 NH, 0.045 OHM, 6 GHZ, 1.36 A, 0402 [1005 METRIC], CW100505 SERIES

Deep-Dive with AI

DocumentsDatasheet CW100505 Product Bulletin +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CW100505-1N0D

Current Rating (Amps)	1.36 A
DC Resistance (DCR)	45 mOhm
Frequency - Self Resonant	6 GHz
Height - Seated (Max) [Max] [z]	0.6 mm
Height - Seated (Max) [Max] [z]	0.024 in
Inductance	1 nH
Inductance Frequency - Test	250 MHz
Material - Core	Ceramic
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0402 (1005 Metric)
Q @ Freq	13, 250 MHz
Shielding	Unshielded
Size / Dimension [x]	1 mm
Size / Dimension [x]	0.039 in
Size / Dimension [y]	0.022 "
Size / Dimension [y]	0.55 mm
Supplier Device Package	0402 (1005 Metric)
Tolerance	0.3 nH
Type	Wirewound, Drum Core

CW100505 Series

Part	Inductance	Package / Case	Shielding	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance Frequency - Test	Mounting Type	Material - Core	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR)	Current Rating (Amps)	Q @ Freq	Frequency - Self Resonant	Supplier Device Package
Bourns Inc. CW100505-13NJ	13 nH	0402 (1005 Metric)	Unshielded	Drum Core Wirewound	0.6 mm	0.024 in	250 MHz	Surface Mount	Ceramic	-55 °C	125 °C	5 %	0.022 "	1 mm	0.55 mm	0.039 in
Bourns Inc. CW100505-2N7D	2.7 nH	0402 (1005 Metric)	Unshielded	Drum Core Wirewound	0.6 mm	0.024 in	250 MHz	Surface Mount	Ceramic	-55 °C	125 °C	0.3 nH	0.022 "	1 mm	0.55 mm	0.039 in	120 mOhm	0.64 A	16 250 MHz	6 GHz	0402 (1005 Metric)
Bourns Inc. CW100505-39NJ	39 nH	0402 (1005 Metric)	Unshielded	Drum Core Wirewound	0.6 mm	0.024 in	250 MHz	Surface Mount	Ceramic	-55 °C	125 °C	5 %	0.022 "	1 mm	0.55 mm	0.039 in	550 mOhm	320 mA	25 250 MHz	2.1 GHz	0402 (1005 Metric)
Bourns Inc. CW100505-1N0D	1 nH	0402 (1005 Metric)	Unshielded	Drum Core Wirewound	0.6 mm	0.024 in	250 MHz	Surface Mount	Ceramic	-55 °C	125 °C	0.3 nH	0.022 "	1 mm	0.55 mm	0.039 in	45 mOhm	1.36 A	13 250 MHz	6 GHz	0402 (1005 Metric)
Bourns Inc. CW100505-10NJ	10 nH	0402 (1005 Metric)	Unshielded	Drum Core Wirewound	0.6 mm	0.024 in	250 MHz	Surface Mount	Ceramic	-55 °C	125 °C	5 %	0.022 "	1 mm	0.55 mm	0.039 in	195 mOhm	480 mA	23 250 MHz	3.9 GHz	0402 (1005 Metric)
Bourns Inc. CW100505-23NJ	23 nH	0402 (1005 Metric)	Unshielded	Drum Core Wirewound	0.6 mm	0.024 in	250 MHz	Surface Mount	Ceramic	-55 °C	125 °C	5 %	0.022 "	1 mm	0.55 mm	0.039 in
Bourns Inc. CW100505-24NJ	24 nH	0402 (1005 Metric)	Unshielded	Drum Core Wirewound	0.6 mm	0.024 in	250 MHz	Surface Mount	Ceramic	-55 °C	125 °C	5 %	0.022 "	1 mm	0.55 mm	0.039 in
Bourns Inc. CW100505-R12J	120 nH	0402 (1005 Metric)	Unshielded	Drum Core Wirewound	0.6 mm	0.024 in	150 MHz	Surface Mount	Ceramic	-55 °C	125 °C	5 %	0.022 "	1 mm	0.55 mm	0.039 in	2.66 Ohm	110 mA	20 150 MHz	1.1 GHz	0402 (1005 Metric)
Bourns Inc. CW100505-82NJ	82 nH	0402 (1005 Metric)	Unshielded	Drum Core Wirewound	0.6 mm	0.024 in	150 MHz	Surface Mount	Ceramic	-55 °C	125 °C	5 %	0.022 "	1 mm	0.55 mm	0.039 in	1.25 Ohm	150 mA	20 150 MHz	1.5 GHz	0402 (1005 Metric)
Bourns Inc. CW100505-7N5J	7.5 nH	0402 (1005 Metric)	Unshielded	Drum Core Wirewound	0.6 mm	0.024 in	250 MHz	Surface Mount	Ceramic	-55 °C	125 °C	5 %	0.022 "	1 mm	0.55 mm	0.039 in
