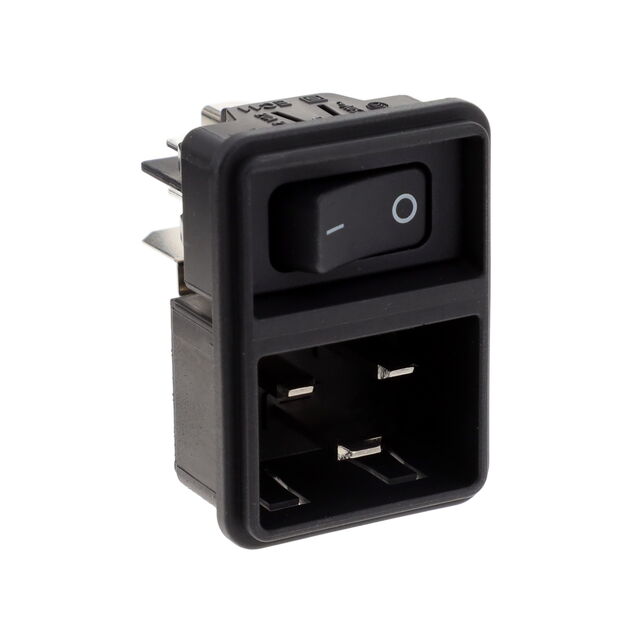

EC11.0001.201.21

Active

SCHURTER Inc.

EC11 POWER ENTRY MODUL 16A - V-L

Search across all available documentation for this part.

Active

SCHURTER Inc.

EC11 POWER ENTRY MODUL 16A - V-L

Technical Specifications

Parameters and characteristics for this part

Specification	EC11.0001.201.21

Approval Agency	CCC, ENEC, cULus
Connector Type	Receptacle, Male Blades - Module
Current Rating (Amps)	20 A
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	46.5 mm
Panel Cutout Dimensions [y]	32.5 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating	250 VAC

AC Power Entry Modules EC11 POWER ENTRY MODUL 16A

Part	Material Flammability Rating	Voltage Rating - Appliance Inlet	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Connector Type	Termination	Termination	Termination	Panel Thickness [custom]	Panel Thickness [custom]	Switch Features	Current Rating - Appliance Inlet	Ingress Protection	Approval Agency	Filter Type	Connector Style	Mounting Type	Voltage Rating	Current Rating (Amps)	Panel Thickness [x]	Panel Thickness [x]
SCHURTER Inc. EC11.0001.206	UL94 V-0	250 VAC	32.5 mm	46.5 mm	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect	0.059 in	1.5 mm	Switch On-Off	10 A	IP40	cULus ENEC	Unfiltered - Commercial	IEC 320-C20	Panel Mount Snap-In
SCHURTER Inc. EC11.0001.201.21	UL94 V-0		46.5 mm	32.5 mm	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect	0.059 in	1.5 mm			IP40	CCC cULus ENEC			Panel Mount Snap-In	250 VAC	20 A
SCHURTER Inc. EC11.0001.001.21	UL94 V-0	250 VAC	32.5 mm	46.5 mm	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect			Switch On-Off	10 A	IP40	cULus ENEC	Unfiltered - Commercial	IEC 320-C20	Flange Panel Mount
SCHURTER Inc. EC11.0001.401	UL94 V-0	250 VAC	32.5 mm	46.5 mm	Receptacle Male Blades - Module	0.25 in	6.3 mm	Quick Connect			Switch On-Off	10 A	IP40	cULus ENEC	Unfiltered - Commercial	IEC 320-C20	Panel Mount Snap-In			2.5 mm	0.098 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC Power Entry Modules EC11 POWER ENTRY MODUL 16A

Technical documentation and resources
