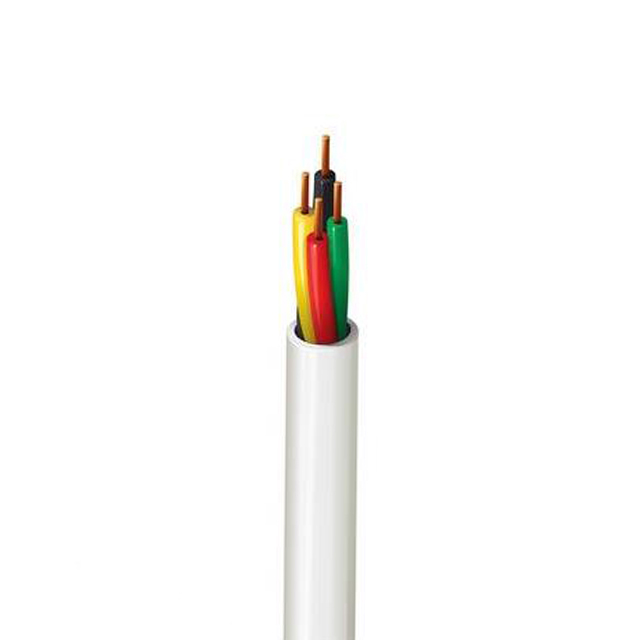

1242A 008U1000

Active

Belden Inc.

4 CNDR PE PVC CM BOX

Search across all available documentation for this part.

Active

Belden Inc.

4 CNDR PE PVC CM BOX

Technical Specifications

Parameters and characteristics for this part

Specification	1242A 008U1000

Cable Type	Multi-Conductor
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

Part	Cable Type	Conductor Material	Number of Conductors	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Conductor Strand	Conductor Insulation	Jacket (Insulation) Material	Voltage	Wire Gauge
Belden Inc. 1242A 008U1000	Multi-Conductor	Copper Bare	4	Gray	0.025 in	0.635 mm	Audio Control Instrumentation	-20 C	60 °C	1000 ft	304.8 m	Solid	Polyolefin (PO)	Poly-Vinyl Chloride (PVC)	300 V	22 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1000	$ 0.41

General part information

4 Conductor Multi-Conductor Cable Gray 22 AWG 1000.0' (304.8m)
