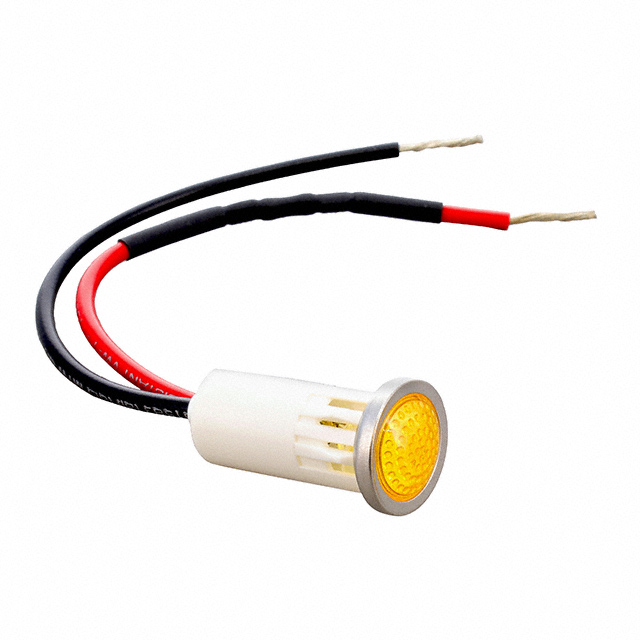

1092D3-250VAC

Active

Visual Communications Company - VCC

INDICATOR PMI AMBER .5" SEMI DOM

Search across all available documentation for this part.

Active

Visual Communications Company - VCC

INDICATOR PMI AMBER .5" SEMI DOM

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Type	Current	Lens Transparency	Panel Cutout Shape	Millicandela Rating	Voltage	Lens Size	Lens Size	Lens Style	Lens Color	Lamp Color	Wavelength - Peak	Panel Cutout Dimensions	Panel Cutout Dimensions	Ratings	Termination Style	Termination Style
Visual Communications Company - VCC 1092D2-12V	Wire Leads - 4.8" (121.92mm)	LED	25 mA	Clear	Round	7000 mcd	12 V	T-1 3/4	5 mm	Round with Convex Top	Colorless	Clear	468 nm	12.7 mm	0.5 in	AC/DC
Visual Communications Company - VCC 1092D2-28V	Wire Leads - 4.8" (121.92mm)	LED	25 mA	Clear	Round	7000 mcd	28 V	T-1 3/4	5 mm	Round with Convex Top	Colorless	Clear	468 nm	12.7 mm	0.5 in	AC/DC
Visual Communications Company - VCC 1092D2-125VAC	Wire Leads - 4.8" (121.92mm)	LED	25 mA	Clear	Round	7000 mcd	125 V	T-1 3/4	5 mm	Round with Convex Top	Colorless	Clear	468 nm	12.7 mm	0.5 in	AC
Visual Communications Company - VCC 1092D3-250VAC	Wire Leads	LED	25 mA	Clear	Round	13000 mcd	250 V			Round with Domed Top	Amber	Amber		12.7 mm	0.5 in	AC	4.6 in	116.84 mm
Visual Communications Company - VCC 1092D6-28V	Wire Leads	LED	25 mA	Clear	Round	3200 mcd	28 V			Round with Domed Top	Blue	Blue		12.7 mm	0.5 in	DC	4.6 in	116.84 mm
Visual Communications Company - VCC 1092D3-125VAC	Wire Leads	LED	25 mA	Diffused	Round	13000 mcd	125 V			Round with Domed Top	Amber	Amber		12.7 mm	0.5 in	AC	4.6 in	116.84 mm
Visual Communications Company - VCC 1092D1-12V	Wire Leads	LED	25 mA	Diffused	Round	13000 mcd	12 V			Round with Domed Top	Red	Red		12.7 mm	0.5 in	DC	4.6 in	116.84 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Amber Clear 250V 25mA Wire Leads - 4.6" (116.84mm)

Technical documentation and resources

No documents available
