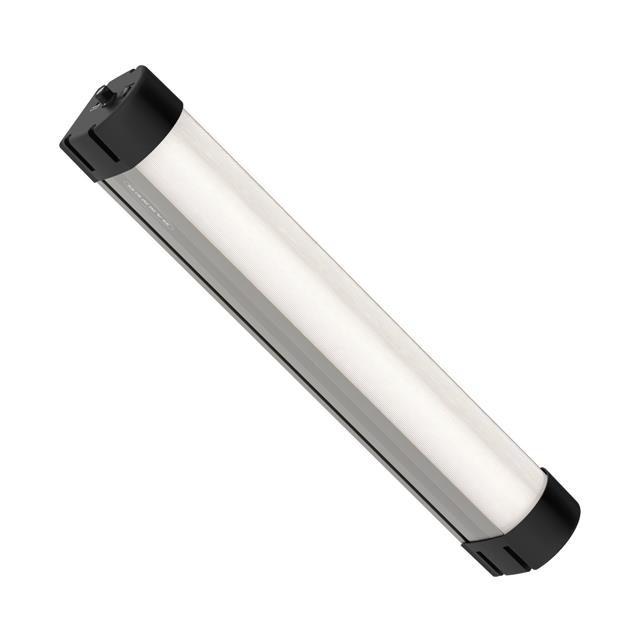

WLB92ZCWW550PBQMB

Active

BANNER ENGINEERING

WLB92 WORK LIGHT BAR; SWITCHED O

Search across all available documentation for this part.

Active

BANNER ENGINEERING

WLB92 WORK LIGHT BAR; SWITCHED O

Technical Specifications

Parameters and characteristics for this part

Specification	WLB92ZCWW550PBQMB

Approval Agency	cULus, CE
Features	Dimmable, On/Off Switch, Cascadable
Housing Material	Aluminum (Al)
Illumination Color	White, Warm
Ingress Protection	IP40
Length [x]	21.65 in
Length [x]	550 mm
Lens Type	Tubular, Diffused
Luminous Flux	3510 lm
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-35 °C
Profile (W x H) [x]	97 mm
Profile (W x H) [x]	3.82 in
Profile (W x H) [y]	4.09 in
Profile (W x H) [y]	104 mm
Rated Life	50000 Hours
Termination Style	Connector
Voltage - Supply	120 VAC

Part	Profile (W x H) [y]	Profile (W x H) [y]	Profile (W x H) [x]	Profile (W x H) [x]	Rated Life	Approval Agency	Voltage - Supply	Luminous Flux	Ingress Protection	Illumination Color	Features	Length [x]	Length [x]	Lens Type	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style
BANNER ENGINEERING WLB92ZCWW550PBQMB	4.09 in	104 mm	97 mm	3.82 in	50000 Hours	CE cULus	120 VAC	3510 lm	IP40	Warm White	Cascadable Dimmable On/Off Switch	21.65 in	550 mm	Diffused Tubular	Aluminum (Al)	50 °C	-35 °C	Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 502.00
Newark	Each	1	$ 511.00

General part information

WLB92 WORK LIGHT BAR; SWITCHED O

Technical documentation and resources
