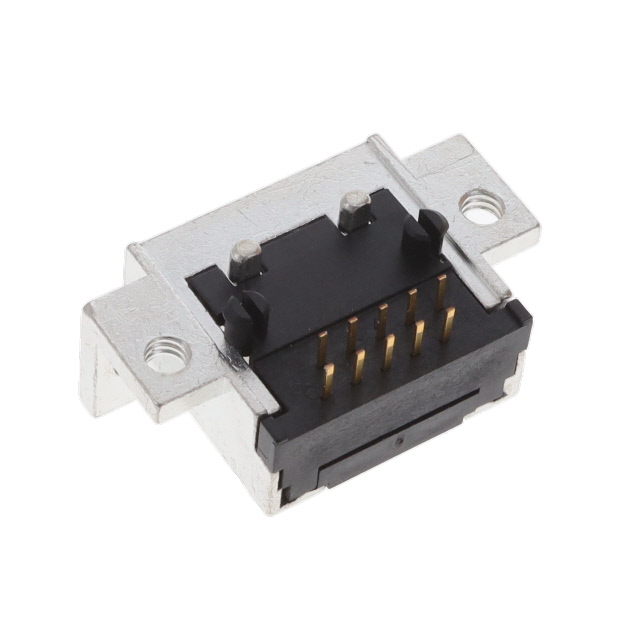

SS-611010-TLF-P-26-4/6

Obsolete

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 10P10C R/A SHLD

Search across all available documentation for this part.

Obsolete

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 10P10C R/A SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	SS-611010-TLF-P-26-4/6

Connector Type	Jack, Compu-Shield
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Features	Keyed, Board Lock, Flange
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts [custom]	10
Number of Positions/Contacts [custom]	10
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shielding	Shielded
Termination	Solder

Part	Contact Material	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Housing Material	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Rows	Features	Connector Type	Number of Ports	Shielding	Mounting Type	LED Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Orientation
BEL MAGNETIC SOLUTIONS SS-611010-TLF-P-26-4/6	Copper Alloy	10	10	Thermoplastic	0.76 Ám	30 Áin	Solder	1	Board Lock Flange Keyed	Compu-Shield Jack	1	Shielded	Through Hole	Does Not Contain LED	85 °C	-40 °C	Gold	90 °
BEL MAGNETIC SOLUTIONS SS-611010-LF-P-1-4/6	Copper Alloy	10	10	Thermoplastic	0.76 Ám	30 Áin	Solder	1	Board Lock Flange Keyed	Compu-Shield Jack	1	Shielded	Through Hole	Does Not Contain LED	85 °C	-40 °C	Gold	90 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Jack Modular Connector 10p10c (RJ50) 90° Angle (Right) Shielded

Technical documentation and resources

No documents available
