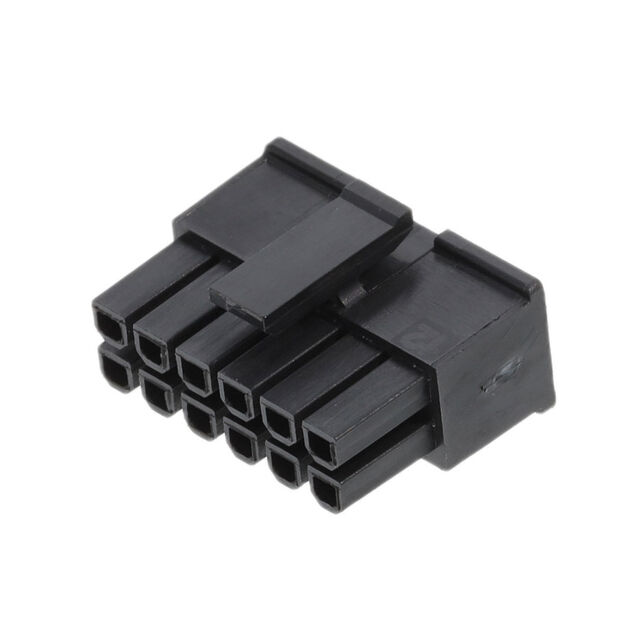

CP3512S0010-NH
ActiveCvilux USA
CONN RCPT HSG 12POS 3.00MM
Deep-Dive with AI
Search across all available documentation for this part.
CP3512S0010-NH
ActiveCvilux USA
CONN RCPT HSG 12POS 3.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CP3512S0010-NH |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Pitch [x] | 3 mm |
| Pitch [x] | 0.118 in |
| Row Spacing [x] | 0.118 in |
| Row Spacing [x] | 3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.20 | |
| 10 | $ 0.15 | |||
| 25 | $ 0.13 | |||
| 50 | $ 0.12 | |||
| 100 | $ 0.11 | |||
| 250 | $ 0.10 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| 2500 | $ 0.07 | |||
Description
General part information
CP3512S Series
12 Rectangular Connectors - Housings Receptacle Black 0.118" (3.00mm)
