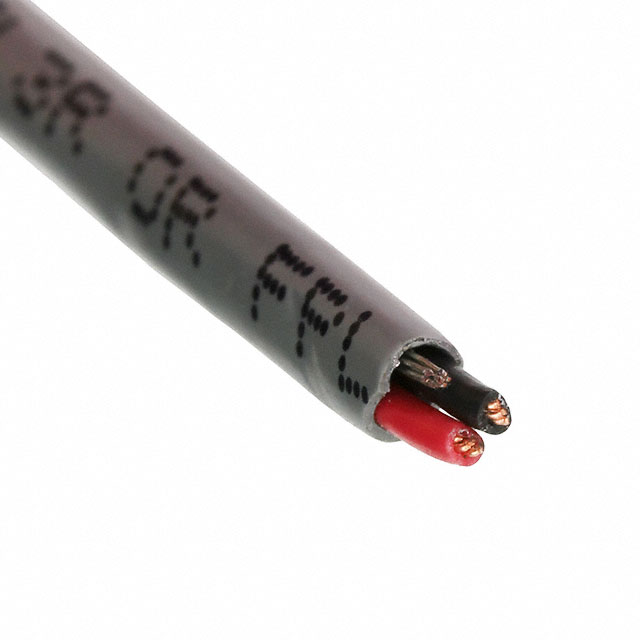

E2002S.18.10
ActivePrysmian Group
CABLE 2COND 22AWG GRAY SHLD
Deep-Dive with AI
Search across all available documentation for this part.
E2002S.18.10
ActivePrysmian Group
CABLE 2COND 22AWG GRAY SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | E2002S.18.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Features | Rip Cord, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 3.18 mm |
| Jacket (Insulation) Diameter [diameter] | 0.125 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Gray |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 2 |
| Shield Coverage | 100 % |
| Shield Material | Flexfoil® |
| Shield Type | Foil |
| Usage | Sound, Security, Alarm |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 87.59 | |
| 3 | $ 81.03 | |||
| 5 | $ 78.22 | |||
| 7 | $ 76.35 | |||
| 10 | $ 74.47 | |||
| 25 | $ 69.79 | |||
| 50 | $ 66.04 | |||
| 100 | $ 63.23 | |||
Description
General part information
E2002S Series
2 Conductor Multi-Conductor Cable Gray 22 AWG Foil 500.0' (152.4m)
