XAM3359AZCZ
ObsoleteTexas Instruments

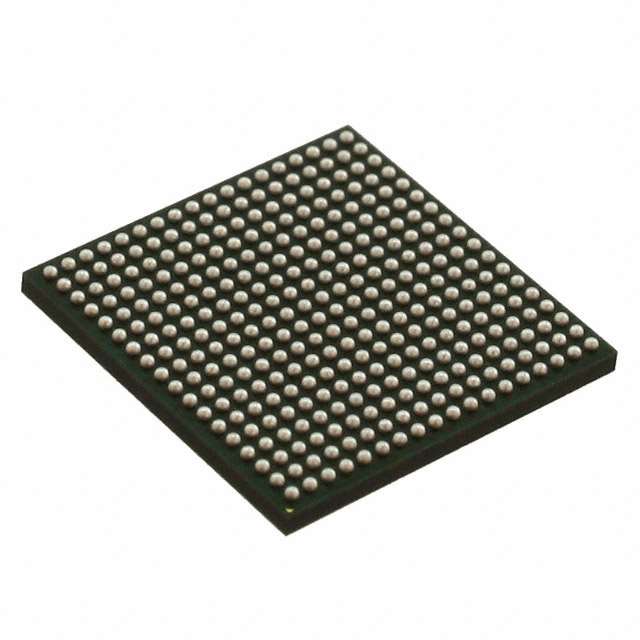

IC MPU SITARA 324NFBGA
Deep-Dive with AI
Search across all available documentation for this part.
XAM3359AZCZ
ObsoleteTexas Instruments
IC MPU SITARA 324NFBGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XAM3359AZCZ |
|---|---|
| Additional Interfaces | CAN, MMC/SD/SDIO, UART, McASP, McSPI, I2C |
| Co-Processors/DSP | NEON™ SIMD, Multimedia |
| Core Processor | ARM® Cortex®-A8 |
| Display & Interface Controllers | Touchscreen, LCD |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Ethernet | 2 |
| Graphics Acceleration | True |
| Mounting Type | Surface Mount |
| Number of Cores/Bus Width | 32 Bit, 1 Core |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | 324-LFBGA |
| RAM Controllers | DDR3L, LPDDR, DDR2, DDR3 |
| Security Features | Cryptography, Random Number Generator |
| Supplier Device Package | 324-NFBGA (15x15) |
| USB | USB 2.0 + PHY (2) |
| Voltage - I/O | 3.3 V, 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
XAM33 Series
ARM® Cortex®-A8 Microprocessor IC Sitara™ 1 Core, 32-Bit 324-NFBGA (15x15)
Documents
Technical documentation and resources
No documents available
