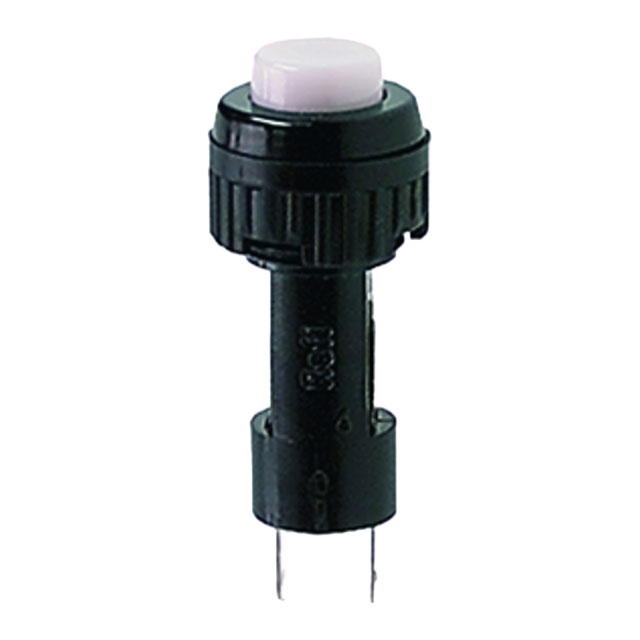

1.10.107.011/0301
ActiveRAFI USA
SWITCH PUSH SPST-NO 100MA 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1.10.107.011/0301
ActiveRAFI USA
SWITCH PUSH SPST-NO 100MA 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1.10.107.011/0301 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 40000 Cycles |
| Ingress Protection | IP40 |
| Mechanical Life | 40000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 9.1 mm |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 24 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.23 | |
| 10 | $ 6.24 | |||
| 25 | $ 5.88 | |||
| 50 | $ 5.63 | |||
| 100 | $ 5.38 | |||
| 250 | $ 5.07 | |||
| 500 | $ 4.85 | |||
| 1000 | $ 4.64 | |||
Description
General part information
1.10107 Series
Pushbutton Switch SPST-NO Standard Panel Mount, Front
