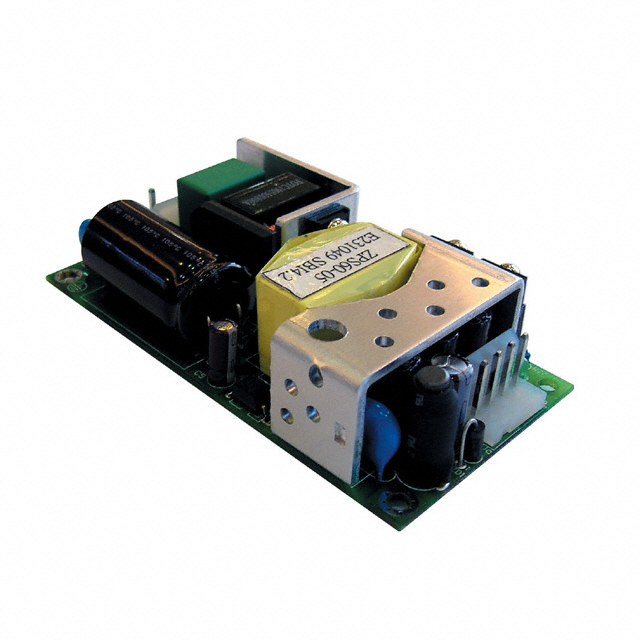

ZPS60-24/P
TDK-LAMBDA
AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, 1 OUTPUT, 60 W, 90V AC TO 264V AC, FIXED
Deep-Dive with AI
Search across all available documentation for this part.
ZPS60-24/P
TDK-LAMBDA
AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, 1 OUTPUT, 60 W, 90V AC TO 264V AC, FIXED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZPS60-24/P |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 2.5 A |
| Efficiency | 86 % |
| Features | Universal Input, DC Input Capable |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Size / Dimension [x] | 4 in |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 1.07 " |
| Size / Dimension [z] | 27.1 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ZPS60 Series
ZPS60-24/P is a ZPS60 series AC-DC power supply. It includes short circuit, overvoltage protection. Application includes industrial, test, COMM. Certified by IEC/UL/CSA/EN62368-1, 60950-1.
