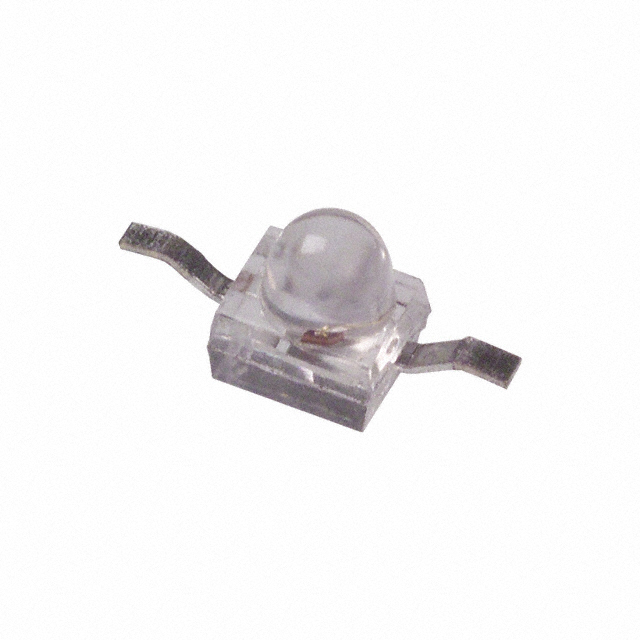

CMD9121VGCTR10
ActiveVisual Communications Company - VCC
LED GREEN CLR ZBEND SMD BOT ENT
Deep-Dive with AI
Search across all available documentation for this part.
CMD9121VGCTR10
ActiveVisual Communications Company - VCC
LED GREEN CLR ZBEND SMD BOT ENT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CMD9121VGCTR10 |
|---|---|
| Color | Green |
| Configuration | Standard |
| Height (Max) [Max] [z] | 3 mm |
| Lens Size [diameter] | 1.9 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 50 mcd |
| Mounting Type | Surface Mount, Bottom Entry |
| Package / Case | 2-SMD, Z-Bend |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Supplier Device Package | Z-Bend |
| Viewing Angle | 25 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Peak | 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.90 | |
| 10 | $ 0.59 | |||
| 100 | $ 0.38 | |||
| Digi-Reel® | 1 | $ 0.90 | ||
| 10 | $ 0.59 | |||
| 100 | $ 0.38 | |||
| Tape & Reel (TR) | 1000 | $ 0.30 | ||
| 2000 | $ 0.28 | |||
| 5000 | $ 0.27 | |||
| 10000 | $ 0.27 | |||
| 25000 | $ 0.26 | |||
Description
General part information
CMD9121 Series
Green LED Indication - Discrete 2.1V 2-SMD, Z-Bend
