WP7B-S034VA1-R500

Unknown

JAE Electronics

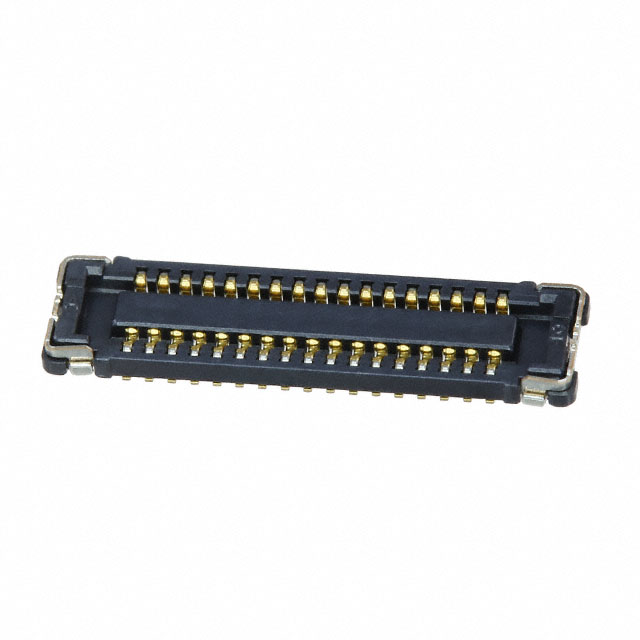

CONN RCPT 34POS SMD GOLD

Search across all available documentation for this part.

Unknown

JAE Electronics

CONN RCPT 34POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	WP7B-S034VA1-R500

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention
Height Above Board [z]	0.71 mm
Height Above Board [z]	0.028 in
Mated Stacking Heights	0.7 mm
Mounting Type	Surface Mount
Number of Positions	34
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Features	Pitch [x]	Pitch [x]	Mounting Type	Connector Type	Height Above Board [z]	Height Above Board [z]	Contact Finish	Number of Positions	Mated Stacking Heights
JAE Electronics WP7B-S034VA1-R8000	4 Áin	0.1 Ám	2	Solder Retention	0.016 in	0.4 mm	Surface Mount	Center Strip Contacts Receptacle	0.71 mm	0.028 in	Gold	34	0.7 mm
JAE Electronics WP7B-S034VA1-R500	4 Áin	0.1 Ám	2	Solder Retention	0.016 in	0.4 mm	Surface Mount	Center Strip Contacts Receptacle	0.71 mm	0.028 in	Gold	34	0.7 mm
JAE Electronics WP7B-S034VA1-R6000	4 Áin	0.1 Ám	2	Solder Retention	0.016 in	0.4 mm	Surface Mount	Center Strip Contacts Receptacle	0.71 mm	0.028 in	Gold	34	0.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

34 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
