EZ-240-BM-X

Active

Amphenol Times Microwave Systems

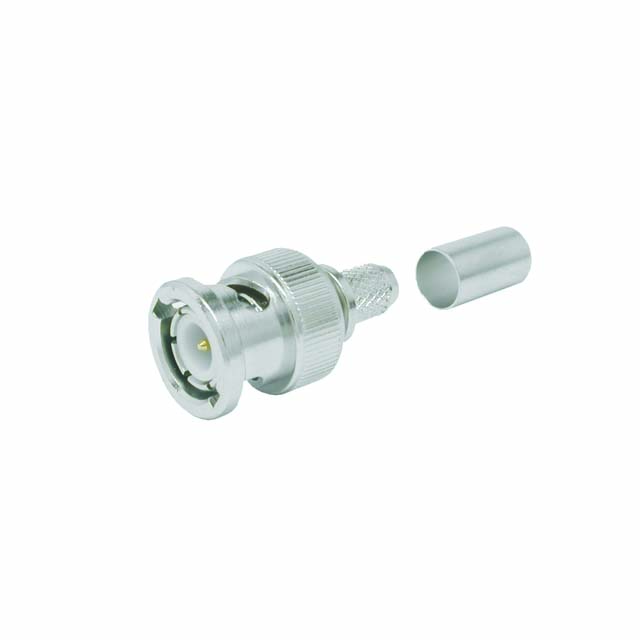

BNC MALE (PLUG) CRIMP CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

EZ-240-BM-X

Active

Amphenol Times Microwave Systems

BNC MALE (PLUG) CRIMP CONNECTOR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EZ-240-BM-X

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-240
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Push On
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	500 V

EZ-240 Series

Part	Frequency - Max [Max]	Voltage Rating	Number of Ports	Body Material	Contact Termination	Impedance	Housing Color	Shield Termination	Mating Cycles	Center Contact Plating	Mounting Type	Cable Group	Connector Type	Fastening Type	Body Finish	Center Contact Material	Connector Style	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Includes
Amphenol Times Microwave Systems EZ-240-BM-RA-X	6000 MHz	500 V	1	Brass	Push On	50 Ohms	Silver	Crimp	500	Gold	Free Hanging (In-Line) Right Angle	LMR-240	Male Pin Plug	Bayonet Lock	White Bronze	Brass	BNC	Polytetrafluoroethylene (PTFE)	155 °C	-55 °C
Amphenol Times Microwave Systems EZ-240-QNM-RA-X	6000 MHz		1	Brass	Crimp	50 Ohms	Silver	Crimp		Gold	Free Hanging (In-Line)	LMR-240	Female Socket Jack	Snap-On	Tin	Beryllium Copper	QN	Polytetrafluoroethylene (PTFE)	125 °C	-40 °C	1 Connector 1 Ferrule
Amphenol Times Microwave Systems EZ-240-QM-RA-X	6000 MHz		1	Brass	Push On	50 Ohms	Silver	Crimp		Gold	Free Hanging (In-Line) Right Angle	LMR-240	Male Pin Plug	Snap-On	White Bronze	Beryllium Copper		Polytetrafluoroethylene (PTFE)	125 °C	-40 °C
Amphenol Times Microwave Systems EZ-240-4310M-RA-X	6000 MHz		1	Brass	Crimp	50 Ohms	Silver	Crimp	500	Gold	Free Hanging (In-Line)	LMR-195	Male Pin Plug		White Bronze	Beryllium Copper	TNC	Polytetrafluoroethylene (PTFE)	125 °C	-40 °C	1 Connector 1 Ferrule
Amphenol Times Microwave Systems EZ-240-FM-75-X	2.5 GHz		1	Brass	Crimp	50 Ohms	Silver	Crimp	500	Gold	Free Hanging (In-Line)	LMR-240	Male Pin Plug	Bayonet Lock	White Bronze	Beryllium Copper	BNC	Polytetrafluoroethylene (PTFE)	125 °C	-55 °C	1 Connector 1 Ferrule
Amphenol Times Microwave Systems EZ-240-716M-RA-X	6000 MHz		1		Crimp	50 Ohms	Silver	Crimp		Gold	Free Hanging (In-Line) Right Angle	LMR-240	Male Pin Plug				4.3/10		85 °C	-40 °C	1 Connector 1 Ferrule
Amphenol Times Microwave Systems EZ-240-4310M-X	6000 MHz	2.5 kV	1	Brass	Push On	50 Ohms	Silver	Crimp	500	Gold	Free Hanging (In-Line)	LMR-240	Male Pin Plug		White Bronze	Beryllium Copper	4.3/10	Polytetrafluoroethylene (PTFE)	125 °C	-40 °C
Amphenol Times Microwave Systems EZ-240-BM-X	4 GHz	500 V	1	Brass	Push On	50 Ohms	Silver	Crimp	500	Gold	Free Hanging (In-Line)	LMR-240	Male Pin Plug	Bayonet Lock	White Bronze	Phosphor Bronze	BNC	Polytetrafluoroethylene (PTFE)	85 °C	-55 °C
Amphenol Times Microwave Systems EZ-240-BM-75-X	2.5 GHz		1	Brass	Crimp	75 Ohms	Silver	Crimp		Gold	Free Hanging (In-Line) Right Angle	LMR-240	Male Pin Plug	Bayonet Lock		Beryllium Copper	BNC	Polytetrafluoroethylene (PTFE)	85 °C	-40 °C	1 Connector 1 Ferrule
Amphenol Times Microwave Systems EZ-240-TM-RA-X	6000 MHz	500 V	1	Brass	Push On	50 Ohms	Silver	Crimp	500	Gold	Free Hanging (In-Line) Right Angle	LMR-240	Male Pin Plug		White Bronze	Brass	TNC	Polytetrafluoroethylene (PTFE)	155 °C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 15.15
		10	$ 13.43
		25	$ 12.92
		50	$ 12.40
		100	$ 11.71
		250	$ 10.68
		500	$ 9.99
		1000	$ 9.16

Description

General part information

EZ-240 Series

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Push On
