TA-24B-A-L01

Active

Unictron Technologies Corporation

LTE TERMINAL ANTENNA

Search across all available documentation for this part.

Active

Unictron Technologies Corporation

LTE TERMINAL ANTENNA

Technical Specifications

Parameters and characteristics for this part

Specification	TA-24B-A-L01

Applications	LTE
Frequency (Center/Band)	2.045 GHz, 2.495 GHz, 892 MHz, 1.92 GHz, 1.795 GHz, 761 MHz
Frequency Group	Wide Band
Frequency Range	1.71 GHz, 2.69 GHz, 1.92 GHz, 2.17 GHz, 1.88 GHz, 1.85 GHz, 960 MHz, 698 MHz, 1.99 GHz, 824 MHz
Frequency Range [Max]	2300 MHz
Frequency Range [Min]	824 MHz
Gain	4.17 dBi, 2.59 dBi, 3.28 dBi, 4.31 dBi, 3.85 dBi
Height (Max) [Max]	48 mm
Height (Max) [Max]	1.89 in
Mounting Type	Connector Mount
Number of Bands	6
Return Loss	-5 dB, -6 dB, -2.4 dB, -10 dB
RF Family/Standard	Cellular
VSWR	3.5, 7.28, 3, 2

Part	Number of Bands	Gain	Mounting Type	VSWR	Frequency Group	Frequency (Center/Band)	Frequency Range	Frequency Range [Max]	Frequency Range [Min]	RF Family/Standard	Height (Max) [Max]	Height (Max) [Max]	Applications	Return Loss
Unictron Technologies Corporation TA-24B-A-L01	6	2.59 dBi 3.28 dBi 3.85 dBi 4.17 dBi 4.31 dBi	Connector Mount	2 3 3.5 7.28	Wide Band	1.795 GHz 1.92 GHz 2.045 GHz 2.495 GHz 761 MHz 892 MHz	1.71 GHz 1.85 GHz 1.88 GHz 1.92 GHz 1.99 GHz 2.17 GHz 2.69 GHz 698 MHz 824 MHz 960 MHz	2300 MHz	824 MHz	Cellular	48 mm	1.89 in	LTE	-10 dB -6 dB -5 dB -2.4 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

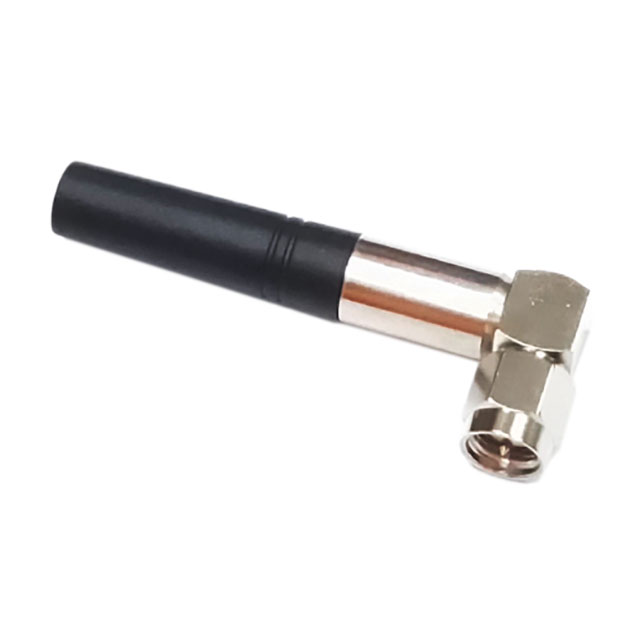

RF ANTENNA LTE Whip, Right Angle SMA Male Connector Mount
