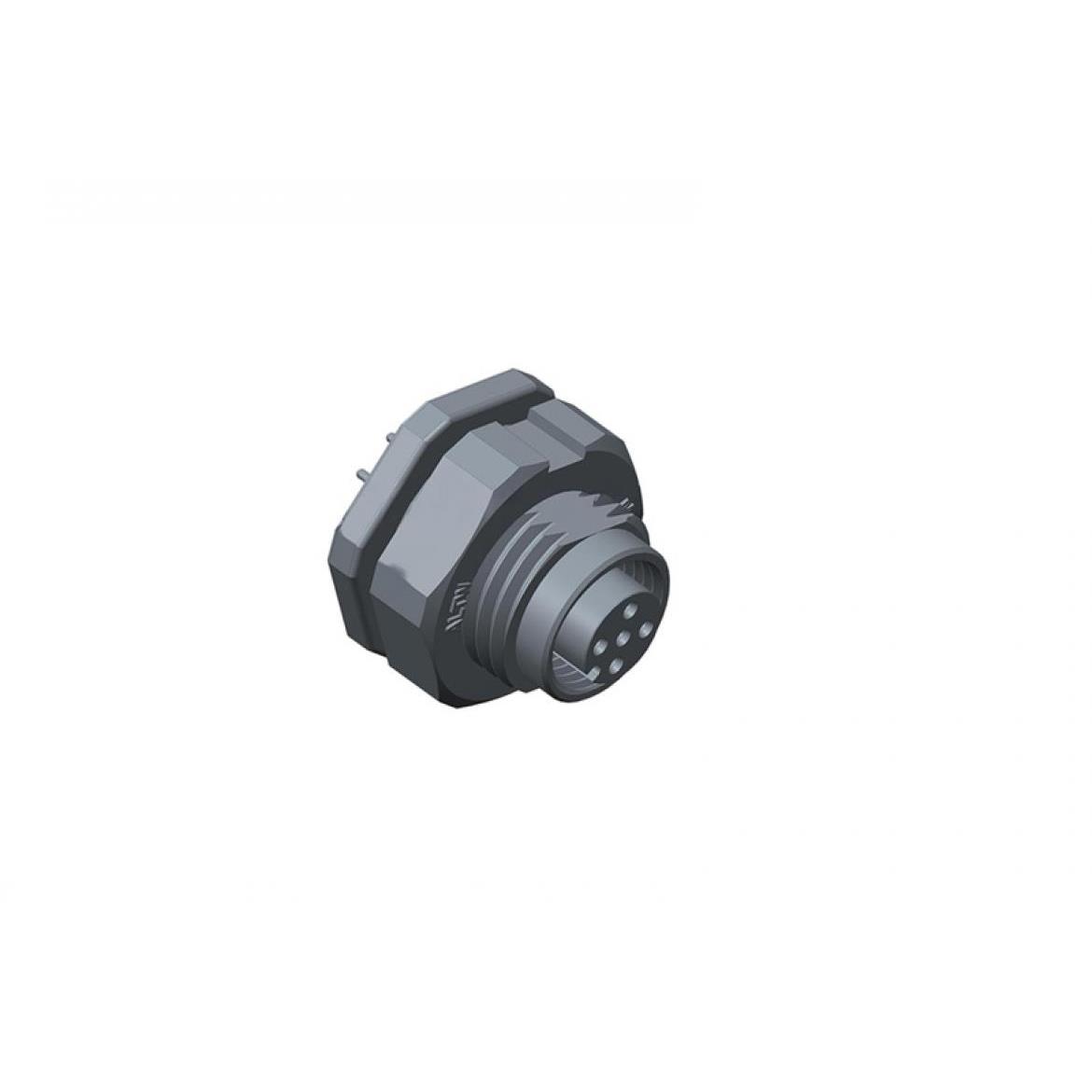

MSAP-08PFFP-SF8002

Active

Amphenol LTW

M12 CONN PCB

Search across all available documentation for this part.

Active

Amphenol LTW

M12 CONN PCB

Technical Specifications

Parameters and characteristics for this part

Specification	MSAP-08PFFP-SF8002

Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	M12-8
Shielding	Unshielded
Termination	Solder
Voltage Rating	30 VDC

Part	Voltage Rating	Material Flammability Rating	Mounting Type	Orientation	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Insert Material	Contact Material	Color	Ingress Protection	Shell Material	Shielding	Number of Positions	Termination	Connector Type	Contact Finish - Mating	Primary Material	Current Rating (Amps)
Amphenol LTW MSAP-08PFFP-SF8002	30 VDC	UL94 V-0	Panel Mount Through Hole	A	M12-8	-40 °C	105 ░C	Bulkhead - Front Side Nut	Polyamide (PA) Nylon Glass Filled	Copper Alloy	Black	IP68 - Dust Tight Waterproof	Glass Filled Nylon Polyamide (PA)	Unshielded	8	Solder	Female Sockets Plug	Gold	Plastic	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Plug, Female Sockets Solder

Technical documentation and resources

No documents available
