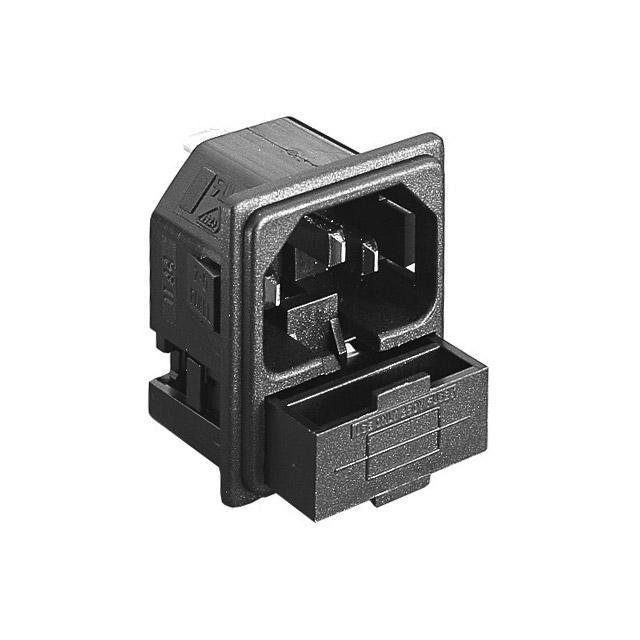

PF0011/15/PC
ActiveBULGIN LIMITED
CONNECTOR: AC SUPPLY; SOCKET; MALE; 10A; 250VAC; C14 (E); IEC 60320
Deep-Dive with AI
Search across all available documentation for this part.
PF0011/15/PC
ActiveBULGIN LIMITED
CONNECTOR: AC SUPPLY; SOCKET; MALE; 10A; 250VAC; C14 (E); IEC 60320
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PF0011/15/PC |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | VDE, CSA, UL, ENEC |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered - Commercial |
| Fuse Holder, Drawer | Drawer Included |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 27.3 mm |
| Panel Cutout Dimensions [y] | 31.12 mm |
| Panel Thickness [custom] | 0.059 in |
| Panel Thickness [custom] | 1.5 mm |
| Termination | Solder |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PF0011 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In; Through Hole, Right Angle
