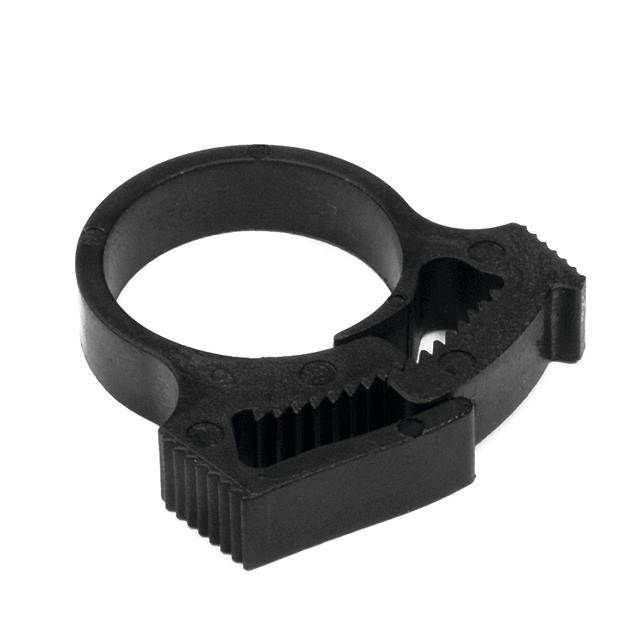

SNP8GHS0M4

Active

HELLERMANNTYTON

CBL CLIP HOSE BLACK

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CBL CLIP HOSE BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	SNP8GHS0M4

Color	Black
Features	Impact Resistant, Heat Stabilized
Length [Max]	0.981 in
Length [Max]	24.92 mm
Length [Min]	16.59 mm
Length [Min]	0.653 in
Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 HB
Material Thickness	0.07 in
Material Thickness	1.78 mm
Opening Size [Max] [z]	0.599 in
Opening Size [Max] [z]	15.21 mm
Opening Size [Min] [z]	13.31 mm
Opening Size [Min] [z]	0.524 in
Type	Clamp, Hose
Type Attributes	Push-Fit
Width	5.92 mm
Width [x]	0.233 in

Part	Material	Opening Size [Max] [z]	Opening Size [Min] [z]	Opening Size [Min] [z]	Opening Size [Max] [z]	Features	Length [Max]	Length [Max]	Length [Min]	Length [Min]	Width	Width [x]	Color	Material Thickness	Material Thickness	Type	Type Attributes	Material Flammability Rating
HELLERMANNTYTON SNP8GHS0M4	Polyamide (PA66) Nylon 6/6 Glass Filled	0.599 in	13.31 mm	0.524 in	15.21 mm	Heat Stabilized Impact Resistant	0.981 in	24.92 mm	16.59 mm	0.653 in	5.92 mm	0.233 in	Black	0.07 in	1.78 mm	Clamp Hose	Push-Fit	UL94 HB
HELLERMANNTYTON SNP8GHS0C2	Polyamide (PA66) Nylon 6/6 Glass Filled	0.599 in	13.31 mm	0.524 in	15.21 mm	Heat Stabilized Impact Resistant	0.981 in	24.92 mm	16.59 mm	0.653 in	5.92 mm	0.233 in	Black	0.07 in	1.78 mm	Clamp Hose	Push-Fit	UL94 HB
