NAA-111-BI21-00
ActiveCW Industries

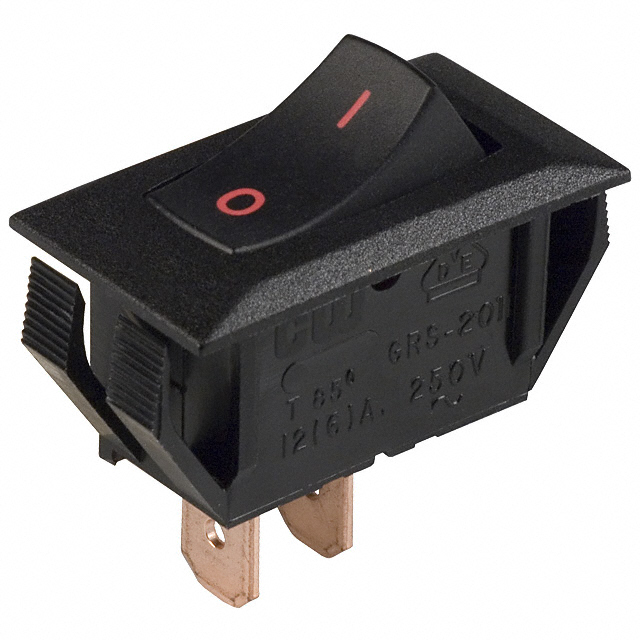

SWITCH ROCKER SPST 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
NAA-111-BI21-00
ActiveCW Industries
SWITCH ROCKER SPST 16A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NAA-111-BI21-00 |
|---|---|
| Actuator Marking | O - |
| Actuator Type | Concave (Curved) |
| Circuit | SPST |
| Color - Actuator/Cap | Black, Red |
| Current Rating (Amps) | 16 A |
| Features | Two-Tone Rocker |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 28.58 mm |
| Panel Cutout Dimensions [y] | 13.97 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.51 | |
| 10 | $ 1.35 | |||
| 25 | $ 1.28 | |||
| 50 | $ 1.22 | |||
| 100 | $ 1.16 | |||
| 250 | $ 1.11 | |||
| 500 | $ 1.05 | |||
| 1000 | $ 1.00 | |||
Description
General part information
NAA-111 Series
Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In
