Technical Specifications

Parameters and characteristics for this part

Specification	EVMK2G

Board Type	Evaluation Platform
Contents	Accessories, Board(s), Cable(s)
Core Processor	C66x, ARM® Cortex®-A15
Mounting Type	Fixed
Suggested Programming Environment	Code Composer Studio
Type	DSP
Utilized IC / Part	66AK2G

66AK2 Series

Part	Voltage - I/O	Supplier Device Package	On-Chip RAM	Type	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Mounting Type	Clock Rate	Package / Case	Voltage - Core	Non-Volatile Memory	Utilized IC / Part	Board Type	Core Processor	Suggested Programming Environment	Contents
Texas Instruments 66AK2H12BXAAW2	0.85 V 1 V 1.35 V 1.5 V 1.8 V 3.3 V	1517-FCBGA (40x40)	12.75 MB	DSP+ARM®	85 °C	0 °C	DMA EBI/EMI Ethernet I2C Serial RapidIO SPI UART/USART USB 3.0	Surface Mount	1.2 GHz	1517-BBGA FCBGA	Variable	384 kB
Texas Instruments 66AK2E02ABDA4	1.35 V 1.5 V 1.8 V 3.3 V	1089-FCBGA (27x27)	2 MB	DSP+ARM®	100 °C	-40 °C	DMA EBI/EMI Ethernet I2C MDIO PCIe SPI TSIP UART/USART USB 3.0 USIM	Surface Mount	1.4 GHz	1089-BFBGA FCBGA	Variable	256 kB
Texas Instruments 66AK2H14BXAAW24	0.85 V 1 V 1.35 V 1.5 V 1.8 V 3.3 V	1517-FCBGA (40x40)	12.75 MB	DSP+ARM®	100 °C	-40 °C	DMA EBI/EMI Ethernet I2C Serial RapidIO SPI UART/USART USB 3.0	Surface Mount	1.2 GHz 1.4 GHz	1517-BBGA FCBGA	Variable	384 kB
Texas Instruments 66AK2H14BAAW24	0.85 V 1 V 1.35 V 1.5 V 1.8 V 3.3 V	1517-FCBGA (40x40)	12.75 MB	DSP+ARM®	85 °C	0 °C	DMA EBI/EMI Ethernet I2C Serial RapidIO SPI UART/USART USB 3.0	Surface Mount	1.2 GHz 1.4 GHz	1517-BBGA FCBGA	Variable	384 kB
Texas Instruments EVMK2G				DSP				Fixed					66AK2G	Evaluation Platform	ARM® Cortex®-A15 C66x	Code Composer Studio	Accessories Board(s) Cable(s)
Texas Instruments 66AK2HHP0BXAAW2
Texas Instruments 66AK2H12BAAW2	0.85 V 1 V 1.35 V 1.5 V 1.8 V 3.3 V	1517-FCBGA (40x40)	12.75 MB	DSP+ARM®	85 °C	0 °C	DMA EBI/EMI Ethernet I2C Serial RapidIO SPI UART/USART USB 3.0	Surface Mount	1.2 GHz	1517-BBGA FCBGA	Variable	384 kB
Texas Instruments 66AK2H14BAAWA24	0.85 V 1 V 1.35 V 1.5 V 1.8 V 3.3 V	1517-FCBGA (40x40)	12.75 MB	DSP+ARM®	100 °C	-40 °C	DMA EBI/EMI Ethernet I2C Serial RapidIO SPI UART/USART USB 3.0	Surface Mount	1.2 GHz 1.4 GHz	1517-BBGA FCBGA	Variable	384 kB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

66AK2 Series

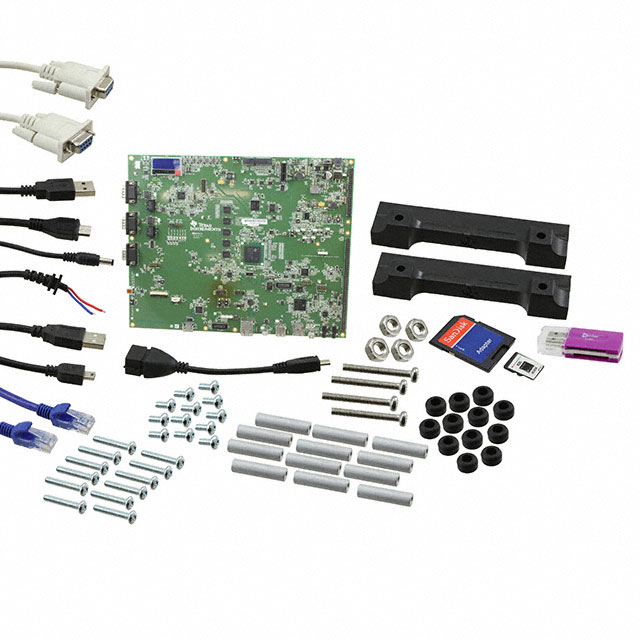

66AK2G - ARM® Cortex®-A15, C66x DSP Embedded Evaluation Board

Documents

Technical documentation and resources

No documents available
