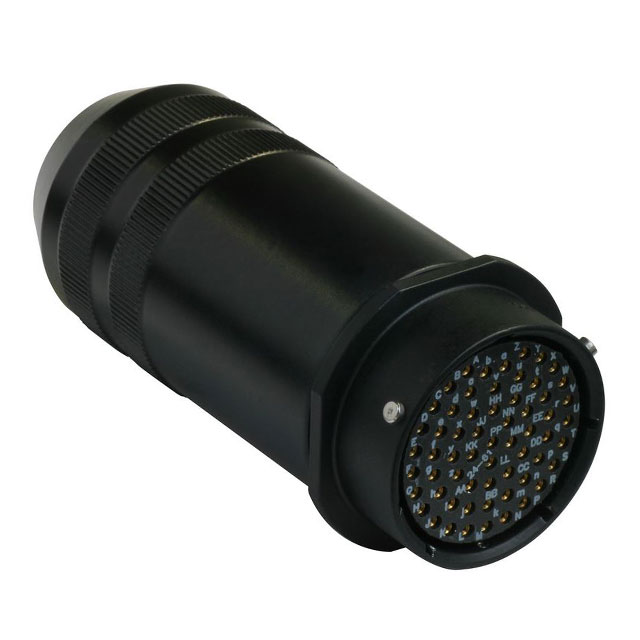

MP-6511-61S-C
ActiveAMPHENOL AUDIO
CONN RCPT FMALE 61P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
MP-6511-61S-C
ActiveAMPHENOL AUDIO
CONN RCPT FMALE 61P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MP-6511-61S-C |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Fastening Type | Bayonet Lock |
| Features | Dust Cap, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 61 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Black |
| Shell Material | Aluminum Die Cast |
| Shell Size - Insert [Max] | 61 |
| Shell Size - Insert [Min] | 24 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 166.92 | |
Description
General part information
MP6511 Series
61 Position Circular Connector Receptacle, Female Sockets Solder Cup
Documents
Technical documentation and resources
