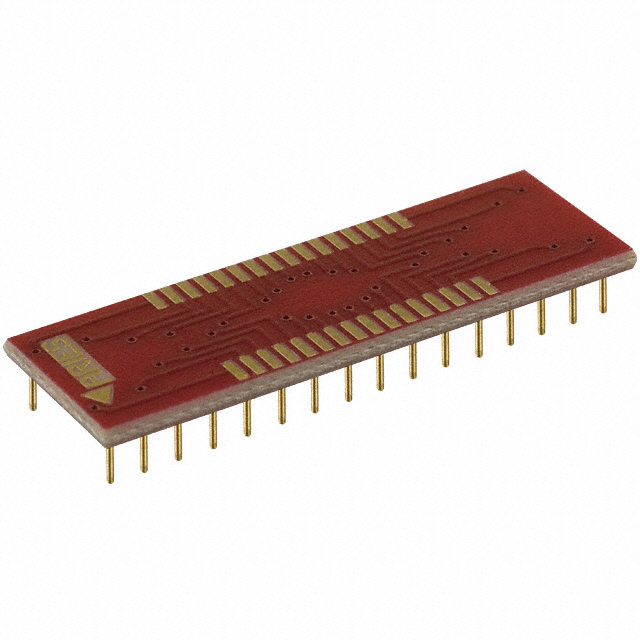

32-450001-11-RC

Active

Aries Electronics

SOCKET ADAPTER SOJ TO 32DIP 0.4

Search across all available documentation for this part.

Active

Aries Electronics

SOCKET ADAPTER SOJ TO 32DIP 0.4

Technical Specifications

Parameters and characteristics for this part

Specification	32-450001-11-RC

Board Material	FR4 Epoxy Glass
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Material - Post [custom]	Brass
Convert From (Adapter End)	SOJ
Convert To (Adapter End)	0.4 in
Convert To (Adapter End)	DIP
Convert To (Adapter End)	10.16 mm
Mounting Type	Through Hole
Number of Pins	32
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in

Part	Termination Post Length	Termination Post Length	Pitch - Post	Pitch - Post	Board Material	Mounting Type	Contact Finish - Mating	Convert To (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Contact Material - Post [custom]	Number of Pins	Convert From (Adapter End)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Termination
Aries Electronics 32-450001-11-RC	3.18 mm	0.125 in	2.54 mm	0.1 in	FR4 Epoxy Glass	Through Hole	Gold	0.4 in	DIP	10.16 mm	Brass	32	SOJ	10 çin	0.25 çm	0.05 in	1.27 mm	Gold	Solder
Aries Electronics 32-450001-10	3.18 mm	0.125 in	2.54 mm	0.1 in	FR4 Epoxy Glass	Through Hole		0.4 in	DIP	10.16 mm		32	SOJ			0.05 in	1.27 mm		Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	96	$ 97.92
