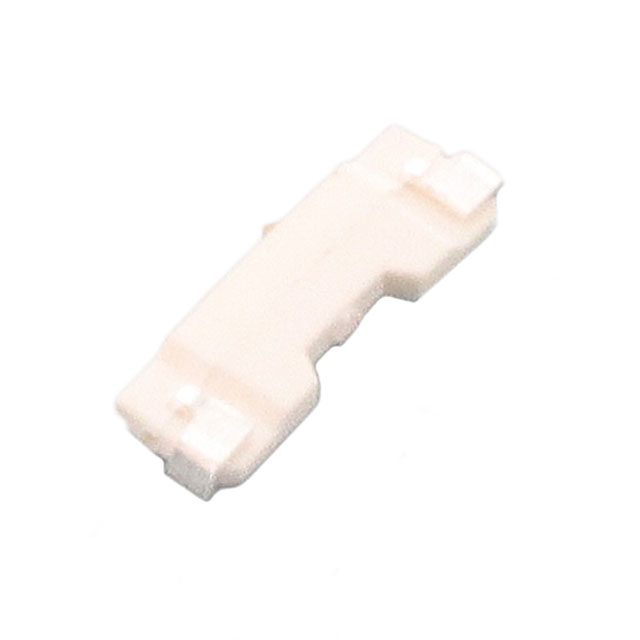

EAPL3811WA0
ActiveEverlight Electronics Co Ltd
LED WHITE CLEAR SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EAPL3811WA0
ActiveEverlight Electronics Co Ltd
LED WHITE CLEAR SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EAPL3811WA0 |
|---|---|
| Color | White |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.5 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2.7 mm |
| Lens Size [y] | 0.41 mm |
| Lens Style | Oval with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 2025 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 3.8 mm |
| Size / Dimension [y] | 1.1 mm |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.34 | |
| 10 | $ 0.19 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| Tape & Reel (TR) | 6000 | $ 0.06 | ||
| 10000 | $ 0.06 | |||
| 14000 | $ 0.06 | |||
| 20000 | $ 0.06 | |||
| 50000 | $ 0.05 | |||
| 100000 | $ 0.05 | |||
| 200000 | $ 0.05 | |||
Description
General part information
EAPL3811 Series
White LED Indication - Discrete 3.1V 2-SMD, No Lead
