LC2259OANP
ActiveE-Switch

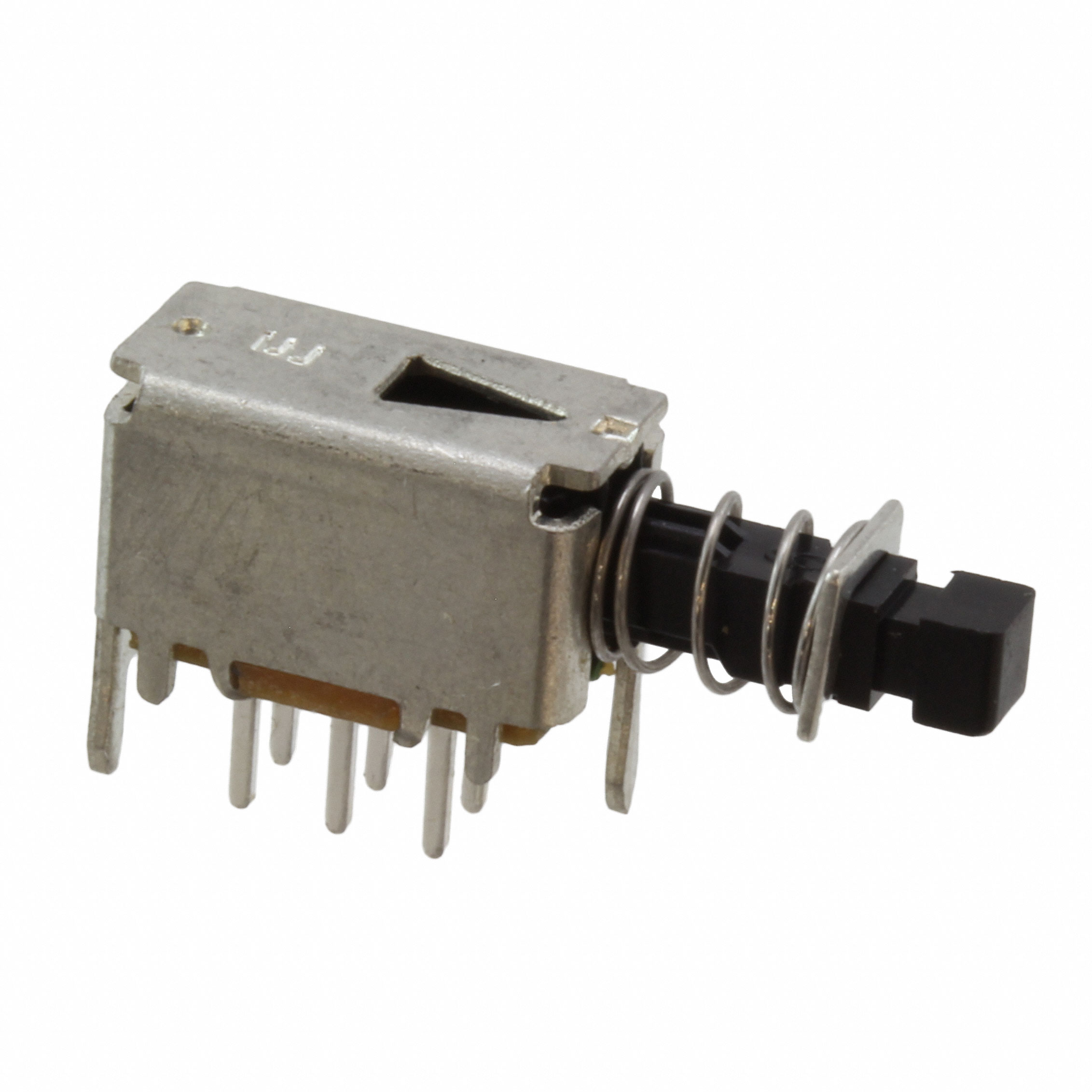

SWITCH: PUSH-BUTTON; POS: 2; DPST; 0.3A/30VDC; LEADS: FOR SOLDERING
Deep-Dive with AI
Search across all available documentation for this part.
LC2259OANP
ActiveE-Switch
SWITCH: PUSH-BUTTON; POS: 2; DPST; 0.3A/30VDC; LEADS: FOR SOLDERING
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LC2259OANP |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Plunger for Cap |
| Circuit | DPDT |
| Current Rating (Amps) | 300 mA |
| Electrical Life | 10000 Cycles |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - DC | 30 V |
LC1258 Series
| Part | Mounting Type | Circuit | Termination Style | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Actuator Marking | Actuator Type | Switch Function | Type | Electrical Life | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch | Through Hole Right Angle | SPDT | Solder Lug | 30 V | 85 °C | -20 C | 300 mA | No Marking | Plunger for Cap | On-Mom | Standard | 10000 Cycles | |
E-Switch | Through Hole Right Angle | DPDT | PC Pin | 30 V | 85 °C | -20 C | 300 mA | No Marking | Plunger for Cap | On-On | Standard | 10000 Cycles | |
E-Switch | Through Hole Right Angle | SPDT | PC Pin | 30 V | 85 °C | -20 C | 300 mA | No Marking | Button Square | On-Mom | Standard | 10000 Cycles | Black |
E-Switch | Through Hole Right Angle | DPDT | PC Pin | 30 V | 85 °C | -20 C | 300 mA | No Marking | Plunger for Cap | On-On | Standard | 10000 Cycles | |
E-Switch | Through Hole Right Angle | SPDT | PC Pin | 30 V | 85 °C | -20 C | 300 mA | No Marking | Button Round | On-On | Standard | 10000 Cycles | Black |
E-Switch | Through Hole Right Angle | DPDT | PC Pin | 30 V | 85 °C | -20 C | 300 mA | No Marking | Plunger for Cap | On-On | Standard | 10000 Cycles | |
E-Switch | Through Hole Right Angle | DPDT | PC Pin | 30 V | 85 °C | -20 C | 300 mA | No Marking | Button Round | On-On | Standard | 10000 Cycles | |
E-Switch | Through Hole Right Angle | DPDT | PC Pin | 30 V | 85 °C | -20 C | 300 mA | No Marking | Plunger for Cap | On-Mom | Standard | 10000 Cycles | |
E-Switch | Through Hole Right Angle | SPDT | PC Pin | 30 V | 85 °C | -20 C | 300 mA | No Marking | Plunger for Cap | On-Mom | Standard | 10000 Cycles | |
E-Switch | Through Hole Right Angle | SPDT | PC Pin | 30 V | 85 °C | -20 C | 300 mA | No Marking | Plunger for Cap | On-Mom | Standard | 10000 Cycles |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.07 | |
| 10 | $ 0.95 | |||
| 350 | $ 0.79 | |||
| 1050 | $ 0.66 | |||
Description
General part information
LC1258 Series
Pushbutton Switch DPDT Standard Through Hole, Right Angle
