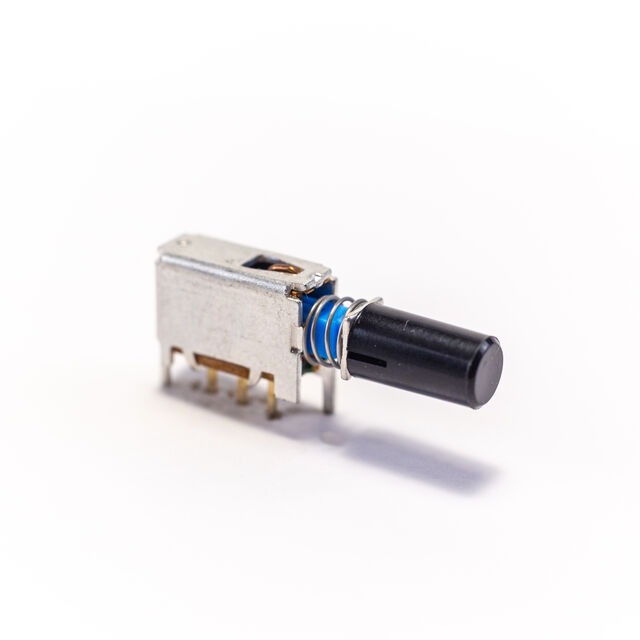

LC1258EENP1RBLK

Active

E-Switch

SWITCH PUSHBUTTON SPDT 0.3A 30V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSHBUTTON SPDT 0.3A 30V

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Circuit	Termination Style	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Actuator Marking	Actuator Type	Switch Function	Type	Electrical Life	Color - Actuator/Cap
E-Switch LC1258OASS	Through Hole Right Angle	SPDT	Solder Lug	30 V	85 °C	-20 C	300 mA	No Marking	Plunger for Cap	On-Mom	Standard	10000 Cycles
E-Switch LC2251EENP	Through Hole Right Angle	DPDT	PC Pin	30 V	85 °C	-20 C	300 mA	No Marking	Plunger for Cap	On-On	Standard	10000 Cycles
E-Switch LC1258OANP1DBLK	Through Hole Right Angle	SPDT	PC Pin	30 V	85 °C	-20 C	300 mA	No Marking	Button Square	On-Mom	Standard	10000 Cycles	Black
E-Switch LC2255EESP	Through Hole Right Angle	DPDT	PC Pin	30 V	85 °C	-20 C	300 mA	No Marking	Plunger for Cap	On-On	Standard	10000 Cycles
E-Switch LC1258EENP1RBLK	Through Hole Right Angle	SPDT	PC Pin	30 V	85 °C	-20 C	300 mA	No Marking	Button Round	On-On	Standard	10000 Cycles	Black
E-Switch LC2251EESP	Through Hole Right Angle	DPDT	PC Pin	30 V	85 °C	-20 C	300 mA	No Marking	Plunger for Cap	On-On	Standard	10000 Cycles
E-Switch LC2255EENPTAGGRY	Through Hole Right Angle	DPDT	PC Pin	30 V	85 °C	-20 C	300 mA	No Marking	Button Round	On-On	Standard	10000 Cycles
E-Switch LC2255OANP	Through Hole Right Angle	DPDT	PC Pin	30 V	85 °C	-20 C	300 mA	No Marking	Plunger for Cap	On-Mom	Standard	10000 Cycles
E-Switch LC1258OASP	Through Hole Right Angle	SPDT	PC Pin	30 V	85 °C	-20 C	300 mA	No Marking	Plunger for Cap	On-Mom	Standard	10000 Cycles
E-Switch LC1258OANP	Through Hole Right Angle	SPDT	PC Pin	30 V	85 °C	-20 C	300 mA	No Marking	Plunger for Cap	On-Mom	Standard	10000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.42

General part information

Pushbutton Switch SPDT Standard Through Hole, Right Angle

Technical documentation and resources

No documents available
