310-20-0030

Obsolete

CnC Tech, LLC

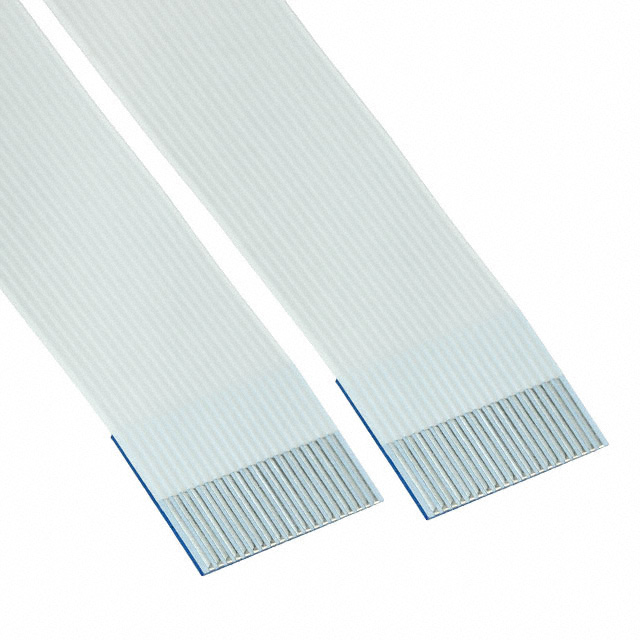

CABLE FFC/FPC 20POS 0.5MM 1.18"

Search across all available documentation for this part.

Obsolete

CnC Tech, LLC

CABLE FFC/FPC 20POS 0.5MM 1.18"

Technical Specifications

Parameters and characteristics for this part

Specification	310-20-0030

Cable Type	FPC, FFC
Length	29.97 mm
Length	1.18 in
Length - Exposed Ends [x]	3.5 mm
Length - Exposed Ends [x]	0.138 in
Number of Conductors	20
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Number of Conductors	Cable Type	Length	Length	Termination Style	Pitch [x]	Pitch [x]	Length - Exposed Ends [x]	Length - Exposed Ends [x]
CnC Tech, LLC 310-20-0076	20	FFC FPC	3 in	76.2 mm	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in	3.5 mm	0.138 in
CnC Tech, LLC 310-20-0051-A	20	FFC FPC	2 in	50.8 mm	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in	3.5 mm	0.138 in
CnC Tech, LLC 310-20-0030	20	FFC FPC	1.18 in	29.97 mm	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in	3.5 mm	0.138 in
CnC Tech, LLC 310-20-0051	20	FFC FPC	2 in	50.8 mm	Backers on Both Sides Top on Both Sides	0.5 mm	0.02 in	3.5 mm	0.138 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.18

General part information

20 Position FFC, FPC Cable 0.020" (0.50mm) 1.180" (29.97mm)
