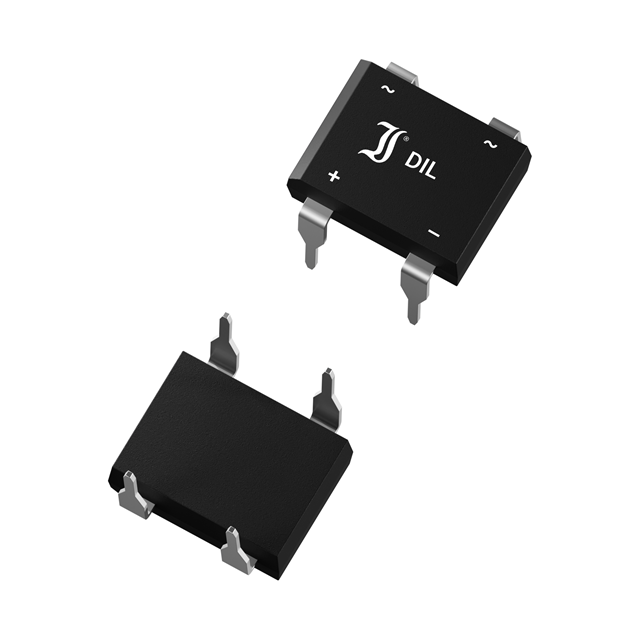

B500D

Active

Diotec Semiconductor

BRIDGE RECT 1PHASE 1KV 1A

Search across all available documentation for this part.

Active

Diotec Semiconductor

BRIDGE RECT 1PHASE 1KV 1A

Technical Specifications

Parameters and characteristics for this part

Specification	B500D

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Package / Case	4-EDIP (0.300", 7.62mm)
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	1000 V

Part	Current - Average Rectified (Io)	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max) [Max]	Technology	Current - Reverse Leakage @ Vr	Diode Type
Diotec Semiconductor B500D	1 A	Through Hole	4-EDIP (0.300" 7.62mm)	150 °C	-50 °C	1.1 V	1000 V	Standard	5 µA	Single Phase

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1 kV Through Hole
